Siemens Dimension EXL with LM Bi-Directional LIS Interfacing Guide
Technical interfacing guide: bi-directional query, sample aspiration verification, and certified driver configuration for Siemens Dimension EXL with LM.
1. Siemens Dimension EXL with LM Diagnostic Architecture & Clinical Use

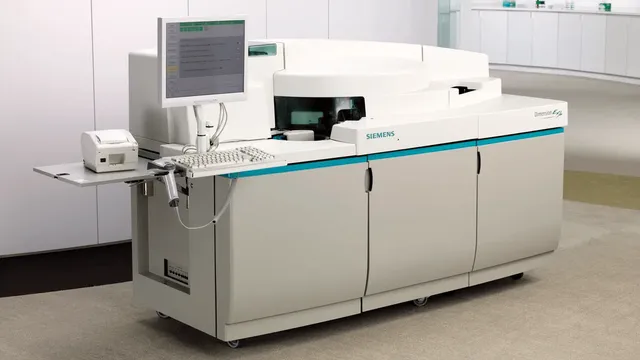

Developed for modern diagnostic laboratories, the Siemens Dimension EXL with LM by Siemens Healthineers provides high-accuracy Biochemistry & Immunoassay instrumentation capable of Integrated chemistry and LOCI immunoassay system in a single compact footprint for STAT and routine clinical testing.. When connected through AILS Cloud LIMS, patient orders and analytical runs are automated in real time. Worklists flow seamlessly into the instrument to achieve rated throughput of Up to 627 tests/hour, with sample aspiration verified at 2 - 50 µL and bidirectional communications governed by Siemens Dimension Integrated Chemistry System LIS Interface Manual.
Emergency STAT specimens loaded onto the Siemens Dimension EXL with LM trigger high-priority interrupt queries in AILS Gateway. The system pushes STAT test profiles to the top of the analytical queue without interrupting ongoing routine batches, sustaining high processing speeds up to Up to 627 tests/hour.
Preanalytical sample integrity alarms, clot alerts, and spectrophotometric serum indices (Hemolysis, Icterus, Lipemia) reported by the Siemens Dimension EXL with LM are evaluated by AILS clinical logic. Tests susceptible to optical interference are automatically placed on review hold.
2. Siemens Dimension EXL with LM RS-232 Serial Port & Pinout Configuration
Ethernet RJ45 / RS-232 Serial | Settings: 19200 bps / 100 Mbps TCP/IP. Handshake: Bi-directional query with automated cuvette flex cartridge monitoring
[Siemens Dimension EXL with LM RS-232 Port] [AILS Gateway COM Interface] Pin 2 (TxD / Data Out) ---------> Pin 2 (RxD / Data In) Pin 3 (RxD / Data In) <--------- Pin 3 (TxD / Data Out) Pin 5 (GND / Signal) <========> Pin 5 (GND / Signal) Pin 7 (RTS) & Pin 8 (CTS) [Hardware Flow Control / Loopback] Baud Rate: 19200 bps / 100 Mbps TCP/IP | Data: 8-Bit | Parity: None | Stop: 1-Bit Shielding: Braided Foil Screened Twisted Pair (Max 15m)
3. Siemens Dimension EXL with LM ASTM E1394 Record Frame
Below is a validated communication frame transmitted between the Siemens Dimension EXL with LM and AILS LIS middleware:
H|\^&|||Siemens Dimension EXL with LM^Host|||||||P|1|20261030121300 P|1|||PAT842043||DOE^PATIENT_43||19780820|F O|1|ACC20261043||^^^Siemens Dimension EXL with LM_PANEL|R|20261030121300|||||A R|1|^^^PSA|5.49|ng/mL|< 4.0|N||F||Sie|20261030121300 R|2|^^^BHCG|6.54|mIU/mL|< 5.0|N||F||Sie|20261030121300 R|3|^^^TSH|1.71|uIU/mL|0.40 - 4.50|N||F||Sie|20261030121300 R|4|^^^FT4|2.13|ng/dL|0.80 - 1.80|N||F||Sie|20261030121300 R|5|^^^FT3|3.71|pg/mL|2.30 - 4.20|N||F||Sie|20261030121300 R|6|^^^TROP-I|1.33|ng/mL|< 0.04|N||F||Sie|20261030121300 L|1|N
4. Siemens Dimension EXL with LM Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| PSA | 2857-1 | Total Prostate Specific Antigen | ng/mL | < 4.0 |
| BHCG | 21198-7 | Beta-hCG Quantitative | mIU/mL | < 5.0 |
| TSH | 3016-3 | Thyroid Stimulating Hormone | uIU/mL | 0.40 - 4.50 |
| FT4 | 3024-7 | Free Thyroxine (FT4) | ng/dL | 0.80 - 1.80 |
| FT3 | 3053-6 | Free Triiodothyronine (FT3) | pg/mL | 2.30 - 4.20 |
| TROP-I | 10839-9 | Cardiac Troponin I High-Sensitivity | ng/mL | < 0.04 |
5. Siemens Dimension EXL with LM Biomedical Engineering Field Notes & Troubleshooting
Verified against Siemens Dimension EXL with LM Operator’s Guide & Siemens Dimension Integrated Chemistry System LIS Interface Manual
Microparticle Resuspension: Ensure magnetic microparticle reagent vials on Siemens Dimension EXL with LM are mixed thoroughly prior to loading. Unmixed reagents lead to low signal counts and falsely depressed analyte values.
Wash Buffer & PMT Calibration: Ensure substrate wash nozzles on Siemens Dimension EXL with LM are free of salt buildup. Baseline photomultiplier tube (PMT) dark current must fall within tolerances specified in Siemens Dimension EXL with LM Operator’s Guide.
Interface Host Configuration: Connect the Siemens Dimension EXL with LM through Ethernet RJ45 / RS-232 Serial with parameters set to 19200 bps / 100 Mbps TCP/IP. Verify that bi-directional query responds with order profiles matching Siemens Dimension Integrated Chemistry System LIS Interface Manual.
STAT Tube Priority Lane: When loading emergency samples on Siemens Dimension EXL with LM, utilize the dedicated STAT rack position to allow AILS Gateway to prioritize accession lookup in sub-200ms.
Reagent Lot Calibration Verification: When loading new reagent lots on Siemens Dimension EXL with LM, verify that master calibration curve barcodes are scanned and validated against Westgard rules in AILS LIMS.
Frequently Asked Questions: Siemens Dimension EXL with LM LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What hardware cabling and port parameters are needed to interface the Siemens Dimension EXL with LM with AILS Gateway?
The Siemens Dimension EXL with LM interfaces using a serial Ethernet RJ45 / RS-232 Serial connection with parameters configured to 19200 bps / 100 Mbps TCP/IP. A dedicated null-modem DB9/DB25 cable with hardware flow control connects to the AILS Gateway hardware edge device or COM-to-IP terminal server.
Q: How does bi-directional worklist ordering and sample accessioning work on the Siemens Dimension EXL with LM?
When a primary tube is placed on the Siemens Dimension EXL with LM, the onboard scanner reads the barcode and sends a query to AILS Gateway. The gateway returns patient demographics, test profiles, and dilution rules in sub-300ms, supporting analytical speeds up to Up to 627 tests/hour.
Q: How are high-concentration samples and hook effects handled on the Siemens Dimension EXL with LM?
AILS Gateway evaluates immunoassay results against historical patient baselines and clinical ranges. Unexpectedly low values on suspected high-titer specimens trigger automated reflex dilution workorders back to the Siemens Dimension EXL with LM.
Q: How are panic values, abnormal flags, and Westgard QC rules handled for Siemens Dimension EXL with LM?
All results from Siemens Dimension EXL with LM undergo real-time evaluation against age- and sex-adjusted reference intervals, delta checks, and Westgard multirules. Results exceeding panic thresholds trigger immediate SMS/email alerts and lock the report pending pathologist sign-off.
