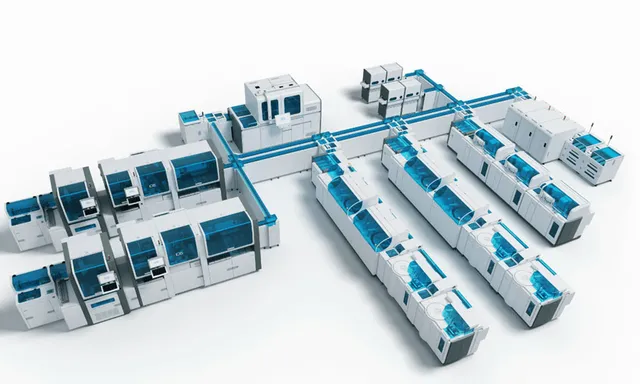

Roche Cobas 8000 (c702 / c502 / e801) Bi-Directional LIS Interfacing Guide
End-to-end laboratory automation guide for Roche Cobas 8000 (c702 / c502 / e801) (Roche Diagnostics) with zero transcription error.
1. Roche Cobas 8000 (c702 / c502 / e801) Diagnostic Architecture & Clinical Use
Operating at the core of clinical laboratory operations, the Roche Cobas 8000 (c702 / c502 / e801) from Roche Diagnostics delivers specialized Biochemistry & Immunoassay diagnostics for Flagship high-volume modular diagnostic system processing thousands of samples daily in major central labs.. Direct integration with AILS Cloud LIMS establishes an automated bi-directional link that eliminates lost results, enforces sample volume compliance of 1.0 - 35 µL, and maximizes walkaway processing up to Up to 9,800 tests/hour in maximum configuration using authentic ASTM E1381 / E1394 over TCP/IP LAN message framing.
As specimen tubes advance on the Roche Cobas 8000 (c702 / c502 / e801), the integrated barcode scanner identifies the primary tube barcode and dispatches an instant query to AILS Gateway. The gateway dynamically returns patient demographics, assigned test orders (Full consolidated Roche menu across chemistry, immunochemistry, and serolog...), and auto-dilution factors, completing Advanced bi-directional host query with STAT priority rack lane management in sub-300ms.
All observations received from the Roche Cobas 8000 (c702 / c502 / e801) undergo automated evaluation against age- and sex-stratified reference intervals, Westgard multirules (1-3s, 2-2s, R-4s, 10x), and Levey-Jennings charts. Control failures automatically halt patient result release on affected channels.
2. Roche Cobas 8000 (c702 / c502 / e801) TCP/IP Socket & Network Configuration
Gigabit Ethernet LAN via Cobas Core Unit | Settings: 1 Gbps TCP/IP. Handshake: Advanced bi-directional host query with STAT priority rack lane management
[Roche Cobas 8000 (c702 / c502 / e801) Ethernet IP] [AILS Gateway Socket Router] IP Assignment: Static / Fixed DHCP <=======> Listening Host IP: 192.168.1.X Target Port: Port 5000 / 5100 MLLP Frame Start: <VT> (ASCII 0x0B) --------> Buffer Allocation Frame End: <FS><CR> (0x1C 0x0D) --------> Checksum & Commit Record Handshake: Bi-Directional Commit ACK / DSR^Q03 Query-Response
3. Roche Cobas 8000 (c702 / c502 / e801) ASTM E1394 Record Frame
Below is a validated communication frame transmitted between the Roche Cobas 8000 (c702 / c502 / e801) and AILS LIS middleware:
H|\^&|||Roche Cobas 8000 (c702 / c502 / e801)^Host|||||||P|1|20261030124400 P|1|||PAT842034||DOE^PATIENT_34||19780820|F O|1|ACC20261034||^^^Roche Cobas 8000 (c702 / c502 / e801)_PANEL|R|20261030124400|||||A R|1|^^^BHCG|6.27|mIU/mL|< 5.0|N||F||Roc|20261030124400 R|2|^^^TSH|1.44|uIU/mL|0.40 - 4.50|N||F||Roc|20261030124400 R|3|^^^FT4|1.86|ng/dL|0.80 - 1.80|N||F||Roc|20261030124400 R|4|^^^FT3|3.44|pg/mL|2.30 - 4.20|N||F||Roc|20261030124400 R|5|^^^TROP-I|1.06|ng/mL|< 0.04|N||F||Roc|20261030124400 R|6|^^^BNP|106.02|pg/mL|< 100|N||F||Roc|20261030124400 L|1|N
4. Roche Cobas 8000 (c702 / c502 / e801) Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| BHCG | 21198-7 | Beta-hCG Quantitative | mIU/mL | < 5.0 |
| TSH | 3016-3 | Thyroid Stimulating Hormone | uIU/mL | 0.40 - 4.50 |
| FT4 | 3024-7 | Free Thyroxine (FT4) | ng/dL | 0.80 - 1.80 |
| FT3 | 3053-6 | Free Triiodothyronine (FT3) | pg/mL | 2.30 - 4.20 |
| TROP-I | 10839-9 | Cardiac Troponin I High-Sensitivity | ng/mL | < 0.04 |
| BNP | 42637-9 | B-Type Natriuretic Peptide | pg/mL | < 100 |
5. Roche Cobas 8000 (c702 / c502 / e801) Biomedical Engineering Field Notes & Troubleshooting
Verified against Roche Cobas 8000 Operator Manual & Cobas 8000 Modular Analyzer Series Host Interface Manual
High-Dose Hook Effect Protection: High tumor marker or hormone concentrations on Roche Cobas 8000 (c702 / c502 / e801) can cause antigen excess hook effects. AILS LIMS flags unexpected normal results for reflex auto-dilution.
Wash Buffer & PMT Calibration: Ensure substrate wash nozzles on Roche Cobas 8000 (c702 / c502 / e801) are free of salt buildup. Baseline photomultiplier tube (PMT) dark current must fall within tolerances specified in Roche Cobas 8000 Operator Manual.
HL7 / ASTM Message Mapping: The Roche Cobas 8000 (c702 / c502 / e801) transmits chemiluminescent Relative Light Units (RLU) and calculated concentrations (Full consolidated Roche menu across chemistry, imm...). Confirm LOINC code mapping in AILS master catalog.
STAT Tube Priority Lane: When loading emergency samples on Roche Cobas 8000 (c702 / c502 / e801), utilize the dedicated STAT rack position to allow AILS Gateway to prioritize accession lookup in sub-200ms.
Reagent Lot Calibration Verification: When loading new reagent lots on Roche Cobas 8000 (c702 / c502 / e801), verify that master calibration curve barcodes are scanned and validated against Westgard rules in AILS LIMS.
Frequently Asked Questions: Roche Cobas 8000 (c702 / c502 / e801) LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What are the exact communication port settings for the Roche Cobas 8000 (c702 / c502 / e801) interface?
The Roche Cobas 8000 (c702 / c502 / e801) connects via Gigabit Ethernet LAN via Cobas Core Unit operating under ASTM E1381 / E1394 over TCP/IP LAN. For network configurations, configure the instrument with a static IP and point to the AILS Gateway socket listener on 1 Gbps TCP/IP. The driver maintains an persistent MLLP TCP socket with automatic reconnect.
Q: How are patient sample barcodes processed between Roche Cobas 8000 (c702 / c502 / e801) and AILS LIMS?
Specimen barcodes are scanned as tubes enter the aspiration station. AILS Gateway verifies the accession number and transmits assigned panels (Full consolidated Roche menu across chemistry, immunochemist...) to the analyzer firmware instantly.
Q: How are high-concentration samples and hook effects handled on the Roche Cobas 8000 (c702 / c502 / e801)?
AILS Gateway evaluates immunoassay results against historical patient baselines and clinical ranges. Unexpectedly low values on suspected high-titer specimens trigger automated reflex dilution workorders back to the Roche Cobas 8000 (c702 / c502 / e801).
Q: How does AILS LIMS alert staff to critical panic results from the Roche Cobas 8000 (c702 / c502 / e801)?
Critical panic limits trigger immediate visual popups on laboratory dashboard screens and SMS alerts to attending physicians, creating a permanent timestamped audit trail compliant with ISO 15189.
