Siemens Atellica Solution (CH & IM) Bi-Directional LIS Interfacing Guide
Biomedical driver specifications, physical port pinouts, and automated LOINC dictionary mapping for Siemens Atellica Solution (CH & IM).
1. Siemens Atellica Solution (CH & IM) Diagnostic Architecture & Clinical Use

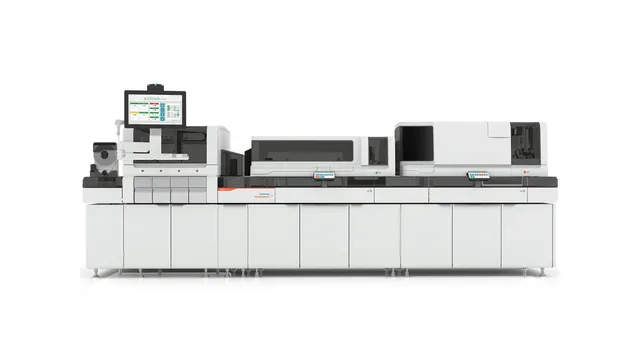

The Siemens Atellica Solution (CH & IM) (Siemens Healthineers) operates as a clinical Biochemistry & Immunoassay analyzer engineered specifically for Flexible, scalable clinical chemistry and immunoassay analyzers with patented bi-directional magnetic sample transport.. Connecting the Siemens Atellica Solution (CH & IM) to AILS Cloud LIMS eliminates manual transcription, automatically verifies 1.5 - 50 µL specimen aspirations, and scales sample processing up to Up to 1,800 tests/hour (CH) + 440 tests/hour (IM). The pre-configured driver interfaces over Gigabit Ethernet RJ45 via Atellica Magline executing HL7 v2.5.1 TCP MLLP standards documented in Siemens Atellica Solution Operator’s Guide.
AILS Gateway downloads scheduled test requests directly into the Siemens Atellica Solution (CH & IM) onboard memory. The platform validates sample fluidic requirements (1.5 - 50 µL) and confirms channel availability, eliminating manual batch setup on the instrument console.
Observations exceeding critical panic limits trigger instant automated notifications via SMS, push alert, and highlighted dashboard banners. AILS LIMS logs mandatory read-back acknowledgments to maintain ISO 15189 and CAP accreditation compliance.
2. Siemens Atellica Solution (CH & IM) TCP/IP Socket & Network Configuration
Gigabit Ethernet RJ45 via Atellica Magline | Settings: 1 Gbps TCP/IP. Handshake: Real-time sample carrier tracking and bidirectional HL7 query/response
[Siemens Atellica Solution (CH & IM) Ethernet IP] [AILS Gateway Socket Router] IP Assignment: Static / Fixed DHCP <=======> Listening Host IP: 192.168.1.X Target Port: Port 5000 / 5100 MLLP Frame Start: <VT> (ASCII 0x0B) --------> Buffer Allocation Frame End: <FS><CR> (0x1C 0x0D) --------> Checksum & Commit Record Handshake: Bi-Directional Commit ACK / DSR^Q03 Query-Response
3. Siemens Atellica Solution (CH & IM) HL7 v2.x Message Stream
Below is a validated communication frame transmitted between the Siemens Atellica Solution (CH & IM) and AILS LIS middleware:
MSH|^~\&|Siemens_Atellica_Solution__CH___IM_|Siemens|AILS_GATEWAY|CENTRAL_LAB|20261030122600||ORU^R01|MSG_50056|P|2.5 PID|1||PAT842056||DOE^PATIENT_56||19840512|M OBR|1|ORD_ACC20261056|ACC20261056|Siemens Atellica Solution (CH & IM)^Profile|||20261030122600 OBX|1|NM|3016-3^TSH^LN||3.23|uIU/mL|0.40 - 4.50|N|||F|||20261030122600 OBX|2|NM|3024-7^FT4^LN||3.66|ng/dL|0.80 - 1.80|N|||F|||20261030122600 OBX|3|NM|3053-6^FT3^LN||5.28|pg/mL|2.30 - 4.20|N|||F|||20261030122600 OBX|4|NM|10839-9^TROP-I^LN||2.84|ng/mL|< 0.04|N|||F|||20261030122600 OBX|5|NM|42637-9^BNP^LN||110.80|pg/mL|< 100|N|||F|||20261030122600 OBX|6|NM|2276-4^FERR^LN||35.20|ng/mL|30 - 400|N|||F|||20261030122600
4. Siemens Atellica Solution (CH & IM) Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| TSH | 3016-3 | Thyroid Stimulating Hormone | uIU/mL | 0.40 - 4.50 |
| FT4 | 3024-7 | Free Thyroxine (FT4) | ng/dL | 0.80 - 1.80 |
| FT3 | 3053-6 | Free Triiodothyronine (FT3) | pg/mL | 2.30 - 4.20 |
| TROP-I | 10839-9 | Cardiac Troponin I High-Sensitivity | ng/mL | < 0.04 |
| BNP | 42637-9 | B-Type Natriuretic Peptide | pg/mL | < 100 |
| FERR | 2276-4 | Ferritin | ng/mL | 30 - 400 |
5. Siemens Atellica Solution (CH & IM) Biomedical Engineering Field Notes & Troubleshooting
Verified against Siemens Atellica Solution Operator’s Guide & Siemens Healthineers Atellica Solution LIS Interface Specification (HL7)
Microparticle Resuspension: Ensure magnetic microparticle reagent vials on Siemens Atellica Solution (CH & IM) are mixed thoroughly prior to loading. Unmixed reagents lead to low signal counts and falsely depressed analyte values.
Sample Volume & Clot Sensing: The Siemens Atellica Solution (CH & IM) aspirates 1.5 - 50 µL. The ultrasonic clot detection sensor halts probe aspiration if fibrin webs or micro-clots are encountered, sending a hardware error to AILS LIMS.
HL7 / ASTM Message Mapping: The Siemens Atellica Solution (CH & IM) transmits chemiluminescent Relative Light Units (RLU) and calculated concentrations (Over 300 clinical chemistry and immunoassay assays...). Confirm LOINC code mapping in AILS master catalog.
STAT Tube Priority Lane: When loading emergency samples on Siemens Atellica Solution (CH & IM), utilize the dedicated STAT rack position to allow AILS Gateway to prioritize accession lookup in sub-200ms.
Reagent Lot Calibration Verification: When loading new reagent lots on Siemens Atellica Solution (CH & IM), verify that master calibration curve barcodes are scanned and validated against Westgard rules in AILS LIMS.
Frequently Asked Questions: Siemens Atellica Solution (CH & IM) LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What pinouts and network settings are required for the Siemens Atellica Solution (CH & IM) LIS connection?
The Siemens Atellica Solution (CH & IM) connects via Gigabit Ethernet RJ45 via Atellica Magline operating under HL7 v2.5.1 TCP MLLP. For network configurations, configure the instrument with a static IP and point to the AILS Gateway socket listener on 1 Gbps TCP/IP. The driver maintains an persistent MLLP TCP socket with automatic reconnect.
Q: What is the workflow when loading barcoded tubes onto the Siemens Atellica Solution (CH & IM)?
The Siemens Atellica Solution (CH & IM) executes automated positive specimen identification. AILS Gateway matches tube accession numbers against laboratory orders, routing priority STAT orders ahead of routine tests.
Q: How are high-concentration samples and hook effects handled on the Siemens Atellica Solution (CH & IM)?
AILS Gateway evaluates immunoassay results against historical patient baselines and clinical ranges. Unexpectedly low values on suspected high-titer specimens trigger automated reflex dilution workorders back to the Siemens Atellica Solution (CH & IM).
Q: How does AILS manage Westgard multirule QC validation on the Siemens Atellica Solution (CH & IM)?
AILS LIMS verifies daily calibration and control runs for Siemens Atellica Solution (CH & IM). If QC values drift outside acceptable standard deviation limits, the system interlocks patient reporting until a re-calibration run is approved.
