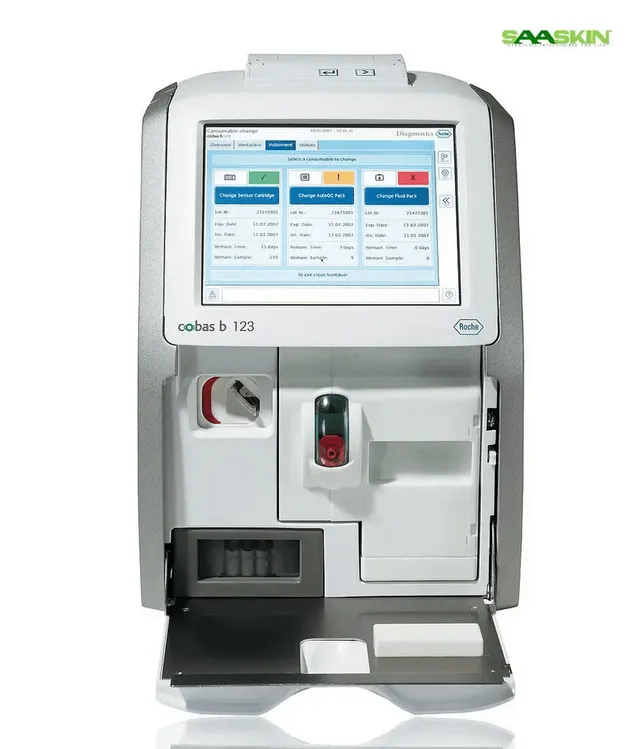

Roche Cobas b123 / b221 Bi-Directional LIS Interfacing Guide
End-to-end laboratory automation guide for Roche Cobas b123 / b221 (Roche Diagnostics) with zero transcription error.
1. Roche Cobas b123 / b221 Diagnostic Architecture & Clinical Use
Operating at the core of clinical laboratory operations, the Roche Cobas b123 / b221 from Roche Diagnostics delivers specialized Blood Gas (ABG) diagnostics for Mobile point-of-care blood gas system with multi-use fluid pack and sensor cartridge for emergency units.. Direct integration with AILS Cloud LIMS establishes an automated bi-directional link that eliminates lost results, enforces sample volume compliance of 45 µL whole blood capillary / syringe, and maximizes walkaway processing up to Sample cycle time ~120 seconds using authentic ASTM E1381 / E1394-91 over TCP/IP LAN message framing.
As specimen tubes advance on the Roche Cobas b123 / b221, the integrated barcode scanner identifies the primary tube barcode and dispatches an instant query to AILS Gateway. The gateway dynamically returns patient demographics, assigned test orders (pH, pO2, pCO2, Hct, Na+, K+, Ca++, Cl-, Glucose, Lactate, tHb, SO2, O2Hb, C...), and auto-dilution factors, completing ASTM protocol with cobas b link connectivity in sub-300ms.
All observations received from the Roche Cobas b123 / b221 undergo automated evaluation against age- and sex-stratified reference intervals, Westgard multirules (1-3s, 2-2s, R-4s, 10x), and Levey-Jennings charts. Control failures automatically halt patient result release on affected channels.
2. Roche Cobas b123 / b221 TCP/IP Socket & Network Configuration
Ethernet RJ45 / USB Host | Settings: 100 Mbps TCP/IP. Handshake: ASTM protocol with cobas b link connectivity
[Roche Cobas b123 / b221 Ethernet IP] [AILS Gateway Socket Router] IP Assignment: Static / Fixed DHCP <=======> Listening Host IP: 192.168.1.X Target Port: Port 5000 / 5100 MLLP Frame Start: <VT> (ASCII 0x0B) --------> Buffer Allocation Frame End: <FS><CR> (0x1C 0x0D) --------> Checksum & Commit Record Handshake: Bi-Directional Commit ACK / DSR^Q03 Query-Response
3. Roche Cobas b123 / b221 ASTM E1394 Record Frame
Below is a validated communication frame transmitted between the Roche Cobas b123 / b221 and AILS LIS middleware:
H|\^&|||Roche Cobas b123 / b221^Host|||||||P|1|20261030123200 P|1|||PAT842062||DOE^PATIENT_62||19780820|F O|1|ACC20261062||^^^Roche Cobas b123 / b221_PANEL|R|20261030123200|||||A R|1|^^^LAC|2.38|mmol/L|0.5 - 1.6|N||F||Roc|20261030123200 R|2|^^^PH|9.58|pH units|7.350 - 7.450|N||F||Roc|20261030123200 R|3|^^^PCO2|38.61|mmHg|35.0 - 45.0|N||F||Roc|20261030123200 R|4|^^^PO2|85.86|mmHg|80.0 - 100.0|N||F||Roc|20261030123200 R|5|^^^SO2|101.61|%|95.0 - 99.0|N||F||Roc|20261030123200 R|6|^^^HCO3|24.96|mmol/L|22.0 - 26.0|N||F||Roc|20261030123200 L|1|N
4. Roche Cobas b123 / b221 Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| LAC | 2524-7 | Lactate Whole Blood (Amperometric) | mmol/L | 0.5 - 1.6 |
| PH | 2744-1 | Blood pH (Direct Potentiometry) | pH units | 7.350 - 7.450 |
| PCO2 | 2019-8 | Partial Pressure CO2 | mmHg | 35.0 - 45.0 |
| PO2 | 2703-7 | Partial Pressure O2 | mmHg | 80.0 - 100.0 |
| SO2 | 2708-6 | Oxygen Saturation (Co-oximetry) | % | 95.0 - 99.0 |
| HCO3 | 1960-4 | Bicarbonate (Calculated) | mmol/L | 22.0 - 26.0 |
5. Roche Cobas b123 / b221 Biomedical Engineering Field Notes & Troubleshooting
Verified against Roche Cobas b123 Operator Manual & Roche Cobas b123 Host Communication Manual
Anaerobic Specimen Handling: Blood gas syringes presented to Roche Cobas b123 / b221 must be thoroughly expelled of air bubbles and analyzed within 15 minutes of collection to avoid PO2/PCO2 shifts.
Sensor Membrane Integrity: Monitor electrode slope voltages on Roche Cobas b123 / b221 for pH, PCO2, PO2, and electrolytes. Calibration failures automatically trigger maintenance holds in AILS LIMS.
Co-Oximetry Hemolysis Checks: For Roche Cobas b123 / b221 models equipped with multi-wavelength spectrophotometers, verify that total hemoglobin (tHb), oxyhemoglobin (O2Hb), and methemoglobin (MetHb) optical zeroing passes daily.
Calibration Gas Pressure: Ensure calibration gas cylinders feeding Roche Cobas b123 / b221 have pressure above 50 psi. Low gas supply causes calibration errors and halts testing.
Immediate Panic Threshold Routing: Critical blood gas values (e.g. pH < 7.20 or PO2 < 60 mmHg) on Roche Cobas b123 / b221 immediately trigger urgent SMS/email notifications via AILS LIMS.
Frequently Asked Questions: Roche Cobas b123 / b221 LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What are the exact communication port settings for the Roche Cobas b123 / b221 interface?
The Roche Cobas b123 / b221 connects via Ethernet RJ45 / USB Host operating under ASTM E1381 / E1394-91 over TCP/IP LAN. For network configurations, configure the instrument with a static IP and point to the AILS Gateway socket listener on 100 Mbps TCP/IP. The driver maintains an persistent MLLP TCP socket with automatic reconnect.
Q: How are patient sample barcodes processed between Roche Cobas b123 / b221 and AILS LIMS?
Specimen barcodes are scanned as tubes enter the aspiration station. AILS Gateway verifies the accession number and transmits assigned panels (pH, pO2, pCO2, Hct, Na+, K+, Ca++, Cl-, Glucose, Lactate, tH...) to the analyzer firmware instantly.
Q: How does AILS LIMS handle patient temperature correction for blood gases on Roche Cobas b123 / b221?
AILS LIMS accepts patient body temperature at specimen accessioning and applies standard equations to calculate temperature-corrected pH, PO2, and PCO2 alongside 37°C reference values emitted by the Roche Cobas b123 / b221.
Q: How does AILS LIMS alert staff to critical panic results from the Roche Cobas b123 / b221?
Critical panic limits trigger immediate visual popups on laboratory dashboard screens and SMS alerts to attending physicians, creating a permanent timestamped audit trail compliant with ISO 15189.
