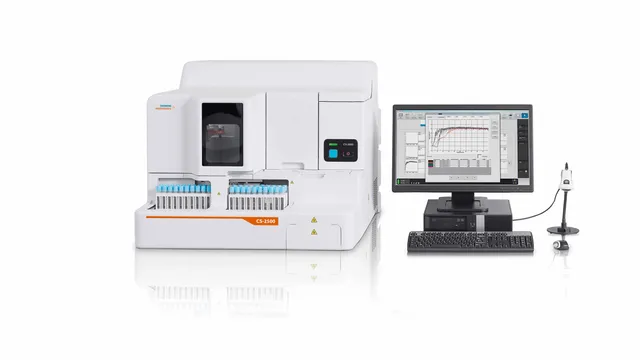

Sysmex CS-2500 Bi-Directional LIS Interfacing Guide
Technical interfacing guide: bi-directional query, sample aspiration verification, and certified driver configuration for Sysmex CS-2500.
1. Sysmex CS-2500 Diagnostic Architecture & Clinical Use
In high-volume clinical pathology environments, the Sysmex CS-2500 (Sysmex Corporation / Siemens Healthineers) provides robust Hematology / Coagulation diagnostic capabilities designed for High-throughput automated multi-wavelength blood coagulation analyzer with Preanalytical Sample Integrity (PSI) testing for Hemolysis, Icterus, Lipemia, and fill volume.. Interface connectivity via AILS Gateway activates bidirectional sample accessioning, automated dilution factor management, and real-time result dispatch up to Up to 180 tests/hour; 50-tube walkaway capacity (5 racks x 10 tubes). The system strictly conforms to physical interface requirements (RJ45 Ethernet (IPU LAN) / RS-232C Serial / 2D Barcode Reader) and official manufacturer guidelines (Siemens CS-2500 System Quick Reference Guide (Doc SMN: 11554034 | T05013.001, Eff. 01/05/2026, Win10)).
Emergency STAT specimens loaded onto the Sysmex CS-2500 trigger high-priority interrupt queries in AILS Gateway. The system pushes STAT test profiles to the top of the analytical queue without interrupting ongoing routine batches, sustaining high processing speeds up to Up to 180 tests/hour; 50-tube walkaway capacity (5 racks x 10 tubes).
Preanalytical sample integrity alarms, clot alerts, and spectrophotometric serum indices (Hemolysis, Icterus, Lipemia) reported by the Sysmex CS-2500 are evaluated by AILS clinical logic. Tests susceptible to optical interference are automatically placed on review hold.
2. Sysmex CS-2500 RS-232 Serial Port & Pinout Configuration
RJ45 Ethernet (IPU LAN) / RS-232C Serial / 2D Barcode Reader | Settings: 19200 bps / 100 Mbps TCP/IP (Port 8000). Handshake: ASTM bi-directional query: LIS downloads test orders by tube barcode; CS-2500 transmits clot times, PSI flags (Hem, Lip, Vol), reaction curve points (bH, dH, Coag %)
[Sysmex CS-2500 RS-232 Port] [AILS Gateway COM Interface] Pin 2 (TxD / Data Out) ---------> Pin 2 (RxD / Data In) Pin 3 (RxD / Data In) <--------- Pin 3 (TxD / Data Out) Pin 5 (GND / Signal) <========> Pin 5 (GND / Signal) Pin 7 (RTS) & Pin 8 (CTS) [Hardware Flow Control / Loopback] Baud Rate: 19200 bps / 100 Mbps TCP/IP (Port 8000) | Data: 8-Bit | Parity: None | Stop: 1-Bit Shielding: Braided Foil Screened Twisted Pair (Max 15m)
3. Sysmex CS-2500 ASTM E1394 Record Frame
Below is a validated communication frame transmitted between the Sysmex CS-2500 and AILS LIS middleware:
H|\^&|||Sysmex CS-2500^Host|||||||P|1|20261030121600 P|1|||PAT842006||DOE^PATIENT_6||19780820|F O|1|ACC20261006||^^^Sysmex CS-2500_PANEL|R|20261030121600|||||A R|1|^^^AT3|84.18|%|80 - 120|N||F||Sys|20261030121600 R|2|^^^PT|11.73|sec|11.0 - 13.5|N||F||Sys|20261030121600 R|3|^^^INR|1.07|ratio|0.85 - 1.15|N||F||Sys|20261030121600 R|4|^^^APTT|26.43|sec|25.0 - 36.0|N||F||Sys|20261030121600 R|5|^^^FIB|210.18|mg/dL|200 - 400|N||F||Sys|20261030121600 R|6|^^^TT|14.88|sec|14.0 - 21.0|N||F||Sys|20261030121600 L|1|N
4. Sysmex CS-2500 Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| AT3 | 3174-0 | Antithrombin III Activity | % | 80 - 120 |
| PT | 5902-2 | Prothrombin Time | sec | 11.0 - 13.5 |
| INR | 6301-6 | Prothrombin Time INR | ratio | 0.85 - 1.15 |
| APTT | 3173-2 | Activated Partial Thromboplastin Time | sec | 25.0 - 36.0 |
| FIB | 3255-7 | Fibrinogen (Clauss) | mg/dL | 200 - 400 |
| TT | 3243-3 | Thrombin Time | sec | 14.0 - 21.0 |
5. Sysmex CS-2500 Biomedical Engineering Field Notes & Troubleshooting
Verified against Siemens CS-2500 System Quick Reference Guide (Doc SMN: 11554034 | T05013.001, Eff. 01/05/2026, Win10) & Sysmex CS-Series ASTM Communication Protocol Specification
Citrate Tube Fill Ratio: Sodium citrate collection tubes must maintain strict 9:1 blood-to-anticoagulant ratio for Sysmex CS-2500. Underfilled tubes cause falsely prolonged PT/APTT times as warned in Siemens CS-2500 System Quick Reference Guide (Doc SMN: 11554034 | T05013.001, Eff. 01/05/2026, Win10).
Multi-Wavelength Clot Curve: The Sysmex CS-2500 transmits clot reaction curve data (bH, dH, Coag %). AILS LIMS stores raw reaction curves to assist hematologists in evaluating abnormal coagulopathies.
Cuvette Waste & Reagent Stirring: Ensure magnetic stir bars are active in reagent vials on Sysmex CS-2500 and cuvette disposal bin is emptied before starting high-volume runs.
Fibrinogen Calibration Curve: Check multi-point calibration curves for Clauss Fibrinogen on Sysmex CS-2500 prior to reporting critical hypofibrinogenemia results.
Daily Probe Cleaning Cycle: Run daily wash and deproteinization protocols detailed in Siemens CS-2500 System Quick Reference Guide (Doc SMN: 11554034 | T05013.001, Eff. 01/05/2026, Win10) to prevent thromboplastin cross-contamination into partial thromboplastin time chambers.
Frequently Asked Questions: Sysmex CS-2500 LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What are the exact communication port settings for the Sysmex CS-2500 interface?
The Sysmex CS-2500 interfaces using a serial RJ45 Ethernet (IPU LAN) / RS-232C Serial / 2D Barcode Reader connection with parameters configured to 19200 bps / 100 Mbps TCP/IP (Port 8000). A dedicated null-modem DB9/DB25 cable with hardware flow control connects to the AILS Gateway hardware edge device or COM-to-IP terminal server.
Q: How are patient sample barcodes processed between Sysmex CS-2500 and AILS LIMS?
Specimen barcodes are scanned as tubes enter the aspiration station. AILS Gateway verifies the accession number and transmits assigned panels (PT (sec, %, INR with ISI), APTT, Fibrinogen (Clauss), Thromb...) to the analyzer firmware instantly.
Q: How does AILS LIMS record clot reaction curves and ISI calibration for Sysmex CS-2500?
AILS Gateway ingests both raw clot times and optical reaction curve points (bH, dH, Coag %) from Sysmex CS-2500. Thromboplastin ISI coefficients are mapped to calculate calibrated INR values automatically.
Q: How does AILS LIMS alert staff to critical panic results from the Sysmex CS-2500?
Critical panic limits trigger immediate visual popups on laboratory dashboard screens and SMS alerts to attending physicians, creating a permanent timestamped audit trail compliant with ISO 15189.
