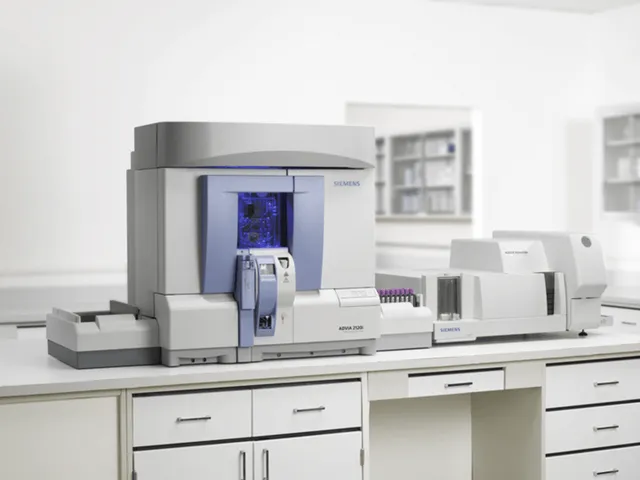

Siemens Advia 2120i Bi-Directional LIS Interfacing Guide
End-to-end laboratory automation guide for Siemens Advia 2120i (Siemens Healthineers) with zero transcription error.
1. Siemens Advia 2120i Diagnostic Architecture & Clinical Use
Developed for modern diagnostic laboratories, the Siemens Advia 2120i by Siemens Healthineers provides high-accuracy Hematology instrumentation capable of High-throughput routine hematology system utilizing dual-angle optical flow cytometry and true peroxidase staining.. When connected through AILS Cloud LIMS, patient orders and analytical runs are automated in real time. Worklists flow seamlessly into the instrument to achieve rated throughput of 120 samples/hour, with sample aspiration verified at 157 µL closed manual mode, 175 µL autosampler and bidirectional communications governed by Siemens ADVIA 2120i LIS Interface Manual (ASTM Protocol).
As specimen tubes advance on the Siemens Advia 2120i, the integrated barcode scanner identifies the primary tube barcode and dispatches an instant query to AILS Gateway. The gateway dynamically returns patient demographics, assigned test orders (Complete blood count, myeloperoxidase differential, reticulocytes, cellular...), and auto-dilution factors, completing ASTM query and result transmission with optical scatter matrix records in sub-300ms.
All observations received from the Siemens Advia 2120i undergo automated evaluation against age- and sex-stratified reference intervals, Westgard multirules (1-3s, 2-2s, R-4s, 10x), and Levey-Jennings charts. Control failures automatically halt patient result release on affected channels.
2. Siemens Advia 2120i RS-232 Serial Port & Pinout Configuration
RS-232C Serial / TCP/IP via LabCell interface | Settings: 9600 / 19200 bps (Serial). Handshake: ASTM query and result transmission with optical scatter matrix records
[Siemens Advia 2120i RS-232 Port] [AILS Gateway COM Interface] Pin 2 (TxD / Data Out) ---------> Pin 2 (RxD / Data In) Pin 3 (RxD / Data In) <--------- Pin 3 (TxD / Data Out) Pin 5 (GND / Signal) <========> Pin 5 (GND / Signal) Pin 7 (RTS) & Pin 8 (CTS) [Hardware Flow Control / Loopback] Baud Rate: 9600 / 19200 bps (Serial) | Data: 8-Bit | Parity: None | Stop: 1-Bit Shielding: Braided Foil Screened Twisted Pair (Max 15m)
3. Siemens Advia 2120i ASTM E1394 Record Frame
Below is a validated communication frame transmitted between the Siemens Advia 2120i and AILS LIS middleware:
H|\^&|||Siemens Advia 2120i^Host|||||||P|1|20261030123100 P|1|||PAT842021||DOE^PATIENT_21||19780820|F O|1|ACC20261021||^^^Siemens Advia 2120i_PANEL|R|20261030123100|||||A R|1|^^^MCV|84.63|fL|80.0 - 100.0|N||F||Sie|20261030123100 R|2|^^^MCH|28.98|pg|27.0 - 33.0|N||F||Sie|20261030123100 R|3|^^^MCHC|34.23|g/dL|32.0 - 36.0|N||F||Sie|20261030123100 R|4|^^^PLT|158.13|10*3/uL|150 - 450|N||F||Sie|20261030123100 R|5|^^^NEUT#|2.73|10*3/uL|2.00 - 7.50|N||F||Sie|20261030123100 R|6|^^^LYMPH#|1.68|10*3/uL|1.00 - 3.50|N||F||Sie|20261030123100 L|1|N
4. Siemens Advia 2120i Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| MCV | 787-2 | Mean Corpuscular Volume | fL | 80.0 - 100.0 |
| MCH | 785-6 | Mean Corpuscular Hemoglobin | pg | 27.0 - 33.0 |
| MCHC | 786-4 | Mean Corpuscular HGB Conc. | g/dL | 32.0 - 36.0 |
| PLT | 777-3 | Platelet Count | 10*3/uL | 150 - 450 |
| NEUT# | 751-8 | Absolute Neutrophil Count | 10*3/uL | 2.00 - 7.50 |
| LYMPH# | 731-0 | Absolute Lymphocyte Count | 10*3/uL | 1.00 - 3.50 |
5. Siemens Advia 2120i Biomedical Engineering Field Notes & Troubleshooting
Verified against Siemens ADVIA 2120i Hematology System Operator’s Guide & Siemens ADVIA 2120i LIS Interface Manual (ASTM Protocol)
Aspiration Draw Volume: The Siemens Advia 2120i requires 157 µL closed manual mode, 175 µL autosampler. Sub-optimal draws or partially clotted specimens cause sample needle clogging and flag false thrombocytopenia in patient runs.
Interface Communication Settings: Configure the RS-232C Serial / TCP/IP via LabCell interface port on the Siemens Advia 2120i to 9600 / 19200 bps (Serial). Ensure hardware flow control (RTS/CTS) is set according to Siemens ADVIA 2120i LIS Interface Manual (ASTM Protocol) to avoid buffer overrun.
Optical & Impedance Zeroing: Ensure daily background count verifications (WBC < 0.2, RBC < 0.02, PLT < 10) pass before launching routine runs on Siemens Advia 2120i. High background counts trigger automated QC holds in AILS LIMS.
Bi-Directional Query Timeout: If Siemens Advia 2120i queries AILS Gateway for test orders, ensure the host timeout is configured to >= 3.0 seconds to prevent query re-transmission during peak batch accessioning.
Preventative Flush & Shutdown: Strictly follow daily sodium hypochlorite cleaning cycles specified in Siemens ADVIA 2120i Hematology System Operator’s Guide. Lyse reagent crystallization on the aperture orifice causes calibration drift across Complete blood count, myeloperoxidase differential...
Frequently Asked Questions: Siemens Advia 2120i LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What hardware cabling and port parameters are needed to interface the Siemens Advia 2120i with AILS Gateway?
The Siemens Advia 2120i interfaces using a serial RS-232C Serial / TCP/IP via LabCell interface connection with parameters configured to 9600 / 19200 bps (Serial). A dedicated null-modem DB9/DB25 cable with hardware flow control connects to the AILS Gateway hardware edge device or COM-to-IP terminal server.
Q: How does bi-directional worklist ordering and sample accessioning work on the Siemens Advia 2120i?
When a primary tube is placed on the Siemens Advia 2120i, the onboard scanner reads the barcode and sends a query to AILS Gateway. The gateway returns patient demographics, test profiles, and dilution rules in sub-300ms, supporting analytical speeds up to 120 samples/hour.
Q: How are 5-part differentials, flags, and scattergrams handled from the Siemens Advia 2120i?
AILS Gateway parses numerical differential counts and qualitative flags (such as immature granulocytes, blasts, or platelet clumps) emitted by the Siemens Advia 2120i. Flagged samples are automatically held for manual peripheral blood smear review.
Q: How are panic values, abnormal flags, and Westgard QC rules handled for Siemens Advia 2120i?
All results from Siemens Advia 2120i undergo real-time evaluation against age- and sex-adjusted reference intervals, delta checks, and Westgard multirules. Results exceeding panic thresholds trigger immediate SMS/email alerts and lock the report pending pathologist sign-off.
