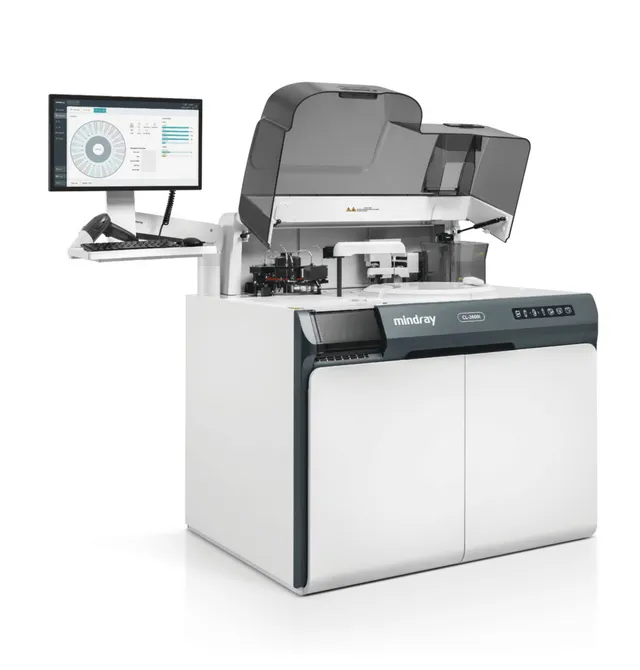

Mindray CL-2000i Bi-Directional LIS Interfacing Guide
Technical interfacing guide: bi-directional query, sample aspiration verification, and certified driver configuration for Mindray CL-2000i.
1. Mindray CL-2000i Diagnostic Architecture & Clinical Use
In high-volume clinical pathology environments, the Mindray CL-2000i (Mindray Medical International) provides robust Immunoassay diagnostic capabilities designed for Floor-standing chemiluminescence immunoassay platform with continuous loading and magnetic separation.. Interface connectivity via AILS Gateway activates bidirectional sample accessioning, automated dilution factor management, and real-time result dispatch up to 240 tests/hour. The system strictly conforms to physical interface requirements (Ethernet LAN) and official manufacturer guidelines (Mindray CL-2000i Operator Manual).
Emergency STAT specimens loaded onto the Mindray CL-2000i trigger high-priority interrupt queries in AILS Gateway. The system pushes STAT test profiles to the top of the analytical queue without interrupting ongoing routine batches, sustaining high processing speeds up to 240 tests/hour.
Preanalytical sample integrity alarms, clot alerts, and spectrophotometric serum indices (Hemolysis, Icterus, Lipemia) reported by the Mindray CL-2000i are evaluated by AILS clinical logic. Tests susceptible to optical interference are automatically placed on review hold.
2. Mindray CL-2000i TCP/IP Socket & Network Configuration
Ethernet LAN | Settings: 100 Mbps TCP Socket. Handshake: HL7 bidirectional query and batch result reporting
[Mindray CL-2000i Ethernet IP] [AILS Gateway Socket Router] IP Assignment: Static / Fixed DHCP <=======> Listening Host IP: 192.168.1.X Target Port: Port 5000 / 5100 MLLP Frame Start: <VT> (ASCII 0x0B) --------> Buffer Allocation Frame End: <FS><CR> (0x1C 0x0D) --------> Checksum & Commit Record Handshake: Bi-Directional Commit ACK / DSR^Q03 Query-Response
3. Mindray CL-2000i HL7 v2.x Message Stream
Below is a validated communication frame transmitted between the Mindray CL-2000i and AILS LIS middleware:
MSH|^~\&|Mindray_CL_2000i|Mindray|AILS_GATEWAY|CENTRAL_LAB|20261030122300||ORU^R01|MSG_50053|P|2.5 PID|1||PAT842053||DOE^PATIENT_53||19840512|M OBR|1|ORD_ACC20261053|ACC20261053|Mindray CL-2000i^Profile|||20261030122300 OBX|1|NM|3053-6^FT3^LN||5.13|pg/mL|2.30 - 4.20|N|||F|||20261030122300 OBX|2|NM|10839-9^TROP-I^LN||2.69|ng/mL|< 0.04|N|||F|||20261030122300 OBX|3|NM|42637-9^BNP^LN||110.65|pg/mL|< 100|N|||F|||20261030122300 OBX|4|NM|2276-4^FERR^LN||35.05|ng/mL|30 - 400|N|||F|||20261030122300 OBX|5|NM|62292-8^VIT-D^LN||35.05|ng/mL|30 - 100|N|||F|||20261030122300 OBX|6|NM|2132-9^B12^LN||218.65|pg/mL|200 - 900|N|||F|||20261030122300
4. Mindray CL-2000i Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| FT3 | 3053-6 | Free Triiodothyronine (FT3) | pg/mL | 2.30 - 4.20 |
| TROP-I | 10839-9 | Cardiac Troponin I High-Sensitivity | ng/mL | < 0.04 |
| BNP | 42637-9 | B-Type Natriuretic Peptide | pg/mL | < 100 |
| FERR | 2276-4 | Ferritin | ng/mL | 30 - 400 |
| VIT-D | 62292-8 | 25-Hydroxy Vitamin D Total | ng/mL | 30 - 100 |
| B12 | 2132-9 | Vitamin B12 (Cobalamin) | pg/mL | 200 - 900 |
5. Mindray CL-2000i Biomedical Engineering Field Notes & Troubleshooting
Verified against Mindray CL-2000i Operator Manual & Mindray CL-2000i LIS Communication Protocol
High-Dose Hook Effect Protection: High tumor marker or hormone concentrations on Mindray CL-2000i can cause antigen excess hook effects. AILS LIMS flags unexpected normal results for reflex auto-dilution.
Wash Buffer & PMT Calibration: Ensure substrate wash nozzles on Mindray CL-2000i are free of salt buildup. Baseline photomultiplier tube (PMT) dark current must fall within tolerances specified in Mindray CL-2000i Operator Manual.
HL7 / ASTM Message Mapping: The Mindray CL-2000i transmits chemiluminescent Relative Light Units (RLU) and calculated concentrations (High-throughput endocrine, infectious diseases, au...). Confirm LOINC code mapping in AILS master catalog.
STAT Tube Priority Lane: When loading emergency samples on Mindray CL-2000i, utilize the dedicated STAT rack position to allow AILS Gateway to prioritize accession lookup in sub-200ms.
Reagent Lot Calibration Verification: When loading new reagent lots on Mindray CL-2000i, verify that master calibration curve barcodes are scanned and validated against Westgard rules in AILS LIMS.
Frequently Asked Questions: Mindray CL-2000i LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What are the exact communication port settings for the Mindray CL-2000i interface?
The Mindray CL-2000i connects via Ethernet LAN operating under HL7 v2.5 TCP MLLP. For network configurations, configure the instrument with a static IP and point to the AILS Gateway socket listener on 100 Mbps TCP Socket. The driver maintains an persistent MLLP TCP socket with automatic reconnect.
Q: How are patient sample barcodes processed between Mindray CL-2000i and AILS LIMS?
Specimen barcodes are scanned as tubes enter the aspiration station. AILS Gateway verifies the accession number and transmits assigned panels (High-throughput endocrine, infectious diseases, autoimmune, ...) to the analyzer firmware instantly.
Q: How are high-concentration samples and hook effects handled on the Mindray CL-2000i?
AILS Gateway evaluates immunoassay results against historical patient baselines and clinical ranges. Unexpectedly low values on suspected high-titer specimens trigger automated reflex dilution workorders back to the Mindray CL-2000i.
Q: How does AILS LIMS alert staff to critical panic results from the Mindray CL-2000i?
Critical panic limits trigger immediate visual popups on laboratory dashboard screens and SMS alerts to attending physicians, creating a permanent timestamped audit trail compliant with ISO 15189.
