Mindray CL-1000i / CL-1200i Bi-Directional LIS Interfacing Guide
Biomedical driver specifications, physical port pinouts, and automated LOINC dictionary mapping for Mindray CL-1000i / CL-1200i.
1. Mindray CL-1000i / CL-1200i Diagnostic Architecture & Clinical Use

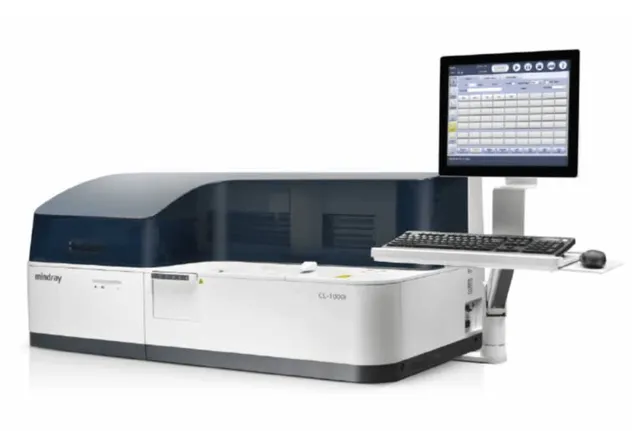

Engineered to optimize analytical precision, the Mindray Medical International Mindray CL-1000i / CL-1200i functions as a dedicated Immunoassay platform supporting Benchtop Chemiluminescence Immunoassay (CLIA) system for routine hormone, cardiac, and tumor marker profiling.. Integrating the instrument with AILS Cloud LIMS establishes an authenticated digital data pipeline: specimen tubes requiring 10 - 50 µL are tracked by tube barcode, processed at speeds up to 120 - 180 tests/hour, and committed to electronic medical records via compliant HL7 v2.3.1 / v2.5 / TCP MLLP protocols.
AILS Gateway downloads scheduled test requests directly into the Mindray CL-1000i / CL-1200i onboard memory. The platform validates sample fluidic requirements (10 - 50 µL) and confirms channel availability, eliminating manual batch setup on the instrument console.
Observations exceeding critical panic limits trigger instant automated notifications via SMS, push alert, and highlighted dashboard banners. AILS LIMS logs mandatory read-back acknowledgments to maintain ISO 15189 and CAP accreditation compliance.
2. Mindray CL-1000i / CL-1200i TCP/IP Socket & Network Configuration
Ethernet RJ45 | Settings: TCP Socket (Port 5100). Handshake: Bi-directional query with sample barcode verification
[Mindray CL-1000i / CL-1200i Ethernet IP] [AILS Gateway Socket Router] IP Assignment: Static / Fixed DHCP <=======> Listening Host IP: 192.168.1.X Target Port: Port 5100 Frame Start: <VT> (ASCII 0x0B) --------> Buffer Allocation Frame End: <FS><CR> (0x1C 0x0D) --------> Checksum & Commit Record Handshake: Bi-Directional Commit ACK / DSR^Q03 Query-Response
3. Mindray CL-1000i / CL-1200i HL7 v2.x Message Stream
Below is a validated communication frame transmitted between the Mindray CL-1000i / CL-1200i and AILS LIS middleware:
MSH|^~\&|Mindray_CL_1000i___CL_1200i|Mindray|AILS_GATEWAY|CENTRAL_LAB|20261030122200||ORU^R01|MSG_50052|P|2.5 PID|1||PAT842052||DOE^PATIENT_52||19840512|M OBR|1|ORD_ACC20261052|ACC20261052|Mindray CL-1000i / CL-1200i^Profile|||20261030122200 OBX|1|NM|2039-6^CEA^LN||5.84|ng/mL|< 3.0|N|||F|||20261030122200 OBX|2|NM|1834-1^AFP^LN||10.16|ng/mL|< 7.0|N|||F|||20261030122200 OBX|3|NM|2857-1^PSA^LN||6.92|ng/mL|< 4.0|N|||F|||20261030122200 OBX|4|NM|21198-7^BHCG^LN||8.00|mIU/mL|< 5.0|N|||F|||20261030122200 OBX|5|NM|3016-3^TSH^LN||3.03|uIU/mL|0.40 - 4.50|N|||F|||20261030122200 OBX|6|NM|3024-7^FT4^LN||3.46|ng/dL|0.80 - 1.80|N|||F|||20261030122200
4. Mindray CL-1000i / CL-1200i Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| CEA | 2039-6 | Carcinoembryonic Antigen | ng/mL | < 3.0 |
| AFP | 1834-1 | Alpha-Fetoprotein | ng/mL | < 7.0 |
| PSA | 2857-1 | Total Prostate Specific Antigen | ng/mL | < 4.0 |
| BHCG | 21198-7 | Beta-hCG Quantitative | mIU/mL | < 5.0 |
| TSH | 3016-3 | Thyroid Stimulating Hormone | uIU/mL | 0.40 - 4.50 |
| FT4 | 3024-7 | Free Thyroxine (FT4) | ng/dL | 0.80 - 1.80 |
5. Mindray CL-1000i / CL-1200i Biomedical Engineering Field Notes & Troubleshooting
Verified against Mindray CL-1000i Chemiluminescence System Operator Manual & Mindray CL-Series Immunoassay LIS Interface Manual
Microparticle Resuspension: Ensure magnetic microparticle reagent vials on Mindray CL-1000i / CL-1200i are mixed thoroughly prior to loading. Unmixed reagents lead to low signal counts and falsely depressed analyte values.
Sample Volume & Clot Sensing: The Mindray CL-1000i / CL-1200i aspirates 10 - 50 µL. The ultrasonic clot detection sensor halts probe aspiration if fibrin webs or micro-clots are encountered, sending a hardware error to AILS LIMS.
HL7 / ASTM Message Mapping: The Mindray CL-1000i / CL-1200i transmits chemiluminescent Relative Light Units (RLU) and calculated concentrations (Thyroid, Fertility, Cardiac biomarkers, Infectious...). Confirm LOINC code mapping in AILS master catalog.
STAT Tube Priority Lane: When loading emergency samples on Mindray CL-1000i / CL-1200i, utilize the dedicated STAT rack position to allow AILS Gateway to prioritize accession lookup in sub-200ms.
Reagent Lot Calibration Verification: When loading new reagent lots on Mindray CL-1000i / CL-1200i, verify that master calibration curve barcodes are scanned and validated against Westgard rules in AILS LIMS.
Frequently Asked Questions: Mindray CL-1000i / CL-1200i LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What pinouts and network settings are required for the Mindray CL-1000i / CL-1200i LIS connection?
The Mindray CL-1000i / CL-1200i connects via Ethernet RJ45 operating under HL7 v2.3.1 / v2.5 / TCP MLLP. For network configurations, configure the instrument with a static IP and point to the AILS Gateway socket listener on TCP Socket (Port 5100). The driver maintains an persistent MLLP TCP socket with automatic reconnect.
Q: What is the workflow when loading barcoded tubes onto the Mindray CL-1000i / CL-1200i?
The Mindray CL-1000i / CL-1200i executes automated positive specimen identification. AILS Gateway matches tube accession numbers against laboratory orders, routing priority STAT orders ahead of routine tests.
Q: How are high-concentration samples and hook effects handled on the Mindray CL-1000i / CL-1200i?
AILS Gateway evaluates immunoassay results against historical patient baselines and clinical ranges. Unexpectedly low values on suspected high-titer specimens trigger automated reflex dilution workorders back to the Mindray CL-1000i / CL-1200i.
Q: How does AILS manage Westgard multirule QC validation on the Mindray CL-1000i / CL-1200i?
AILS LIMS verifies daily calibration and control runs for Mindray CL-1000i / CL-1200i. If QC values drift outside acceptable standard deviation limits, the system interlocks patient reporting until a re-calibration run is approved.
