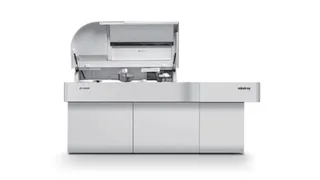

Mindray BS-800 / BS-800M Bi-Directional LIS Interfacing Guide
Complete engineering specification, HL7/ASTM protocols, pinouts, and parameter mapping for Mindray BS-800 / BS-800M on AILS Cloud LIMS.
1. Mindray BS-800 / BS-800M Diagnostic Architecture & Clinical Use
Designed to streamline diagnostic testing, the Mindray BS-800 / BS-800M (Mindray Medical International) is an automated Biochemistry system built for Modular high-throughput chemistry workstation for large hospital networks and commercial diagnostic chains.. Interfacing with AILS Cloud LIMS provides sub-second worklist synchronization, automated delta checks, and seamless specimen tracking at 800 tests/hour (up to 1200 tests/hour with ISE). Physical connectivity operates over Dual Ethernet LAN Ports, parsing multi-parameter results (High-volume LFT, KFT, Cardiac enzymes, toxicology, therapeutic drugs) in alignment with Mindray BS-800 Modular System Operator Manual.
When tube racks enter the aspiration carousel of the Mindray BS-800 / BS-800M, tube positions and accession numbers are validated in real time against active laboratory orders. AILS Gateway synchronizes with the instrument controller over Dual Ethernet LAN Ports, ensuring error-free specimen assignment prior to fluidic sampling of 1.5 - 35 µL.
Patient results from the Mindray BS-800 / BS-800M are cross-referenced against historical patient baselines in real time. Velocity checks and biological within-subject variation (CVi) limits flag implausible clinical shifts for supervisory pathologist review before final sign-off.
2. Mindray BS-800 / BS-800M TCP/IP Socket & Network Configuration
Dual Ethernet LAN Ports | Settings: 1000 Mbps TCP/IP. Handshake: Automated sample tracking line (SDM) integration and bi-directional worklist query
[Mindray BS-800 / BS-800M Ethernet IP] [AILS Gateway Socket Router] IP Assignment: Static / Fixed DHCP <=======> Listening Host IP: 192.168.1.X Target Port: Port 5000 / 5100 MLLP Frame Start: <VT> (ASCII 0x0B) --------> Buffer Allocation Frame End: <FS><CR> (0x1C 0x0D) --------> Checksum & Commit Record Handshake: Bi-Directional Commit ACK / DSR^Q03 Query-Response
3. Mindray BS-800 / BS-800M HL7 v2.x Message Stream
Below is a validated communication frame transmitted between the Mindray BS-800 / BS-800M and AILS LIS middleware:
MSH|^~\&|Mindray_BS_800___BS_800M|Mindray|AILS_GATEWAY|CENTRAL_LAB|20261030123800||ORU^R01|MSG_50028|P|2.5 PID|1||PAT842028||DOE^PATIENT_28||19840512|M OBR|1|ORD_ACC20261028|ACC20261028|Mindray BS-800 / BS-800M^Profile|||20261030123800 OBX|1|NM|2093-3^CHOL^LN||217.40|mg/dL|< 200|N|||F|||20261030123800 OBX|2|NM|2571-8^TRIG^LN||163.40|mg/dL|< 150|N|||F|||20261030123800 OBX|3|NM|2085-9^HDL^LN||44.60|mg/dL|> 40|N|||F|||20261030123800 OBX|4|NM|13457-7^LDL^LN||109.40|mg/dL|< 100|N|||F|||20261030123800 OBX|5|NM|1742-6^ALT^LN||12.20|U/L|10 - 45|N|||F|||20261030123800 OBX|6|NM|1920-8^AST^LN||12.20|U/L|10 - 40|N|||F|||20261030123800
4. Mindray BS-800 / BS-800M Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| CHOL | 2093-3 | Cholesterol Total | mg/dL | < 200 |
| TRIG | 2571-8 | Triglycerides (GPO-PAP) | mg/dL | < 150 |
| HDL | 2085-9 | HDL Cholesterol Direct | mg/dL | > 40 |
| LDL | 13457-7 | LDL Cholesterol Calculated | mg/dL | < 100 |
| ALT | 1742-6 | Alanine Aminotransferase (ALT/SGPT) | U/L | 10 - 45 |
| AST | 1920-8 | Aspartate Aminotransferase (AST/SGOT) | U/L | 10 - 40 |
5. Mindray BS-800 / BS-800M Biomedical Engineering Field Notes & Troubleshooting
Verified against Mindray BS-800 Modular System Operator Manual & Mindray BS-800 Series Host Interface Manual
Serum Index (HIL) Interlocks: The Mindray BS-800 / BS-800M pre-scans serum absorbance. AILS LIMS evaluates HIL flags against analyte interference thresholds before publishing High-volume LFT, KFT, Cardiac enzymes, toxicology,...
Substrate Exhaustion Flags: Kinetic assays (e.g. ALT, AST, LDH) on Mindray BS-800 / BS-800M can experience substrate exhaustion at high enzyme concentrations. Ensure AILS LIMS parses dilution reflex triggers.
Protocol Framing Verification: The Mindray BS-800 / BS-800M transmits data under HL7 v2.5.1 TCP MLLP. Confirm that ACK/NAK line flow control or MLLP envelope bytes (<VT>...<FS><CR>) match AILS Gateway driver settings.
Sample Volume & Dead Volume: Maintain minimal tube dead volume above the required 1.5 - 35 µL on Mindray BS-800 / BS-800M to avoid air bubble aspiration during sample probe descent.
ISE Calibration Drift: For models equipped with Ion-Selective Electrodes (Na+, K+, Cl-), ensure slope calibration voltages meet Nernst equation limits specified in Mindray BS-800 Modular System Operator Manual.
Frequently Asked Questions: Mindray BS-800 / BS-800M LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: How do I physically connect the Mindray BS-800 / BS-800M to AILS Cloud LIMS?
The Mindray BS-800 / BS-800M connects via Dual Ethernet LAN Ports operating under HL7 v2.5.1 TCP MLLP. For network configurations, configure the instrument with a static IP and point to the AILS Gateway socket listener on 1000 Mbps TCP/IP. The driver maintains an persistent MLLP TCP socket with automatic reconnect.
Q: Does the Mindray BS-800 / BS-800M support barcode query and automated worklist download?
Yes, the Mindray BS-800 / BS-800M supports bi-directional query. As racks advance, tube barcodes are checked in real time against AILS LIMS orders, eliminating manual batch entry and sustaining the 800 tests/hour (up to 1200 tests/hour with ISE) rating specified in Mindray BS-800 Modular System Operator Manual.
Q: How does AILS LIMS process serum indices (Hemolysis, Icterus, Lipemia) from the Mindray BS-800 / BS-800M?
The Mindray BS-800 / BS-800M pre-scans specimens and transmits HIL indices alongside chemistry values. AILS LIMS evaluates whether interferent levels exceed analyte-specific thresholds, automatically holding affected tests and alerting lab supervisors.
Q: What quality control and critical alert capabilities exist for the Mindray BS-800 / BS-800M?
Quality control samples run on Mindray BS-800 / BS-800M are automatically logged into Levey-Jennings charts in AILS LIMS. Analytical runs violating 1-3s or 2-2s Westgard rules halt batch validation and alert the quality manager.
