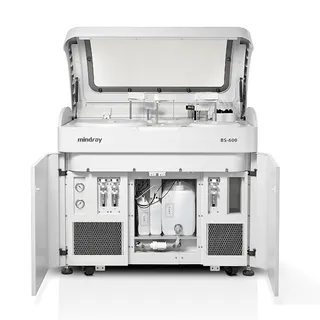

Mindray BS-600 Bi-Directional LIS Interfacing Guide
Biomedical driver specifications, physical port pinouts, and automated LOINC dictionary mapping for Mindray BS-600.
1. Mindray BS-600 Diagnostic Architecture & Clinical Use
The Mindray BS-600 (Mindray Medical International) operates as a clinical Biochemistry analyzer engineered specifically for Mid-to-high volume clinical chemistry analyzer with compact design and continuous sample rack loading.. Connecting the Mindray BS-600 to AILS Cloud LIMS eliminates manual transcription, automatically verifies 2 - 35 µL specimen aspirations, and scales sample processing up to 600 photometric tests/hour, up to 760 with ISE. The pre-configured driver interfaces over Ethernet RJ45 executing HL7 v2.5 / TCP MLLP standards documented in Mindray BS-600 User Manual.
AILS Gateway downloads scheduled test requests directly into the Mindray BS-600 onboard memory. The platform validates sample fluidic requirements (2 - 35 µL) and confirms channel availability, eliminating manual batch setup on the instrument console.
Observations exceeding critical panic limits trigger instant automated notifications via SMS, push alert, and highlighted dashboard banners. AILS LIMS logs mandatory read-back acknowledgments to maintain ISO 15189 and CAP accreditation compliance.
2. Mindray BS-600 TCP/IP Socket & Network Configuration
Ethernet RJ45 | Settings: 100 Mbps TCP Socket. Handshake: HL7 bidirectional query and result delivery
[Mindray BS-600 Ethernet IP] [AILS Gateway Socket Router] IP Assignment: Static / Fixed DHCP <=======> Listening Host IP: 192.168.1.X Target Port: Port 5000 / 5100 MLLP Frame Start: <VT> (ASCII 0x0B) --------> Buffer Allocation Frame End: <FS><CR> (0x1C 0x0D) --------> Checksum & Commit Record Handshake: Bi-Directional Commit ACK / DSR^Q03 Query-Response
3. Mindray BS-600 HL7 v2.x Message Stream
Below is a validated communication frame transmitted between the Mindray BS-600 and AILS LIS middleware:
MSH|^~\&|Mindray_BS_600|Mindray|AILS_GATEWAY|CENTRAL_LAB|20261030123900||ORU^R01|MSG_50029|P|2.5 PID|1||PAT842029||DOE^PATIENT_29||19840512|M OBR|1|ORD_ACC20261029|ACC20261029|Mindray BS-600^Profile|||20261030123900 OBX|1|NM|13457-7^LDL^LN||109.45|mg/dL|< 100|N|||F|||20261030123900 OBX|2|NM|1742-6^ALT^LN||12.25|U/L|10 - 45|N|||F|||20261030123900 OBX|3|NM|1920-8^AST^LN||12.25|U/L|10 - 40|N|||F|||20261030123900 OBX|4|NM|6768-6^ALP^LN||44.65|U/L|40 - 130|N|||F|||20261030123900 OBX|5|NM|2324-2^GGT^LN||11.17|U/L|9 - 48|N|||F|||20261030123900 OBX|6|NM|1975-2^TBIL^LN||1.67|mg/dL|0.2 - 1.2|N|||F|||20261030123900
4. Mindray BS-600 Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| LDL | 13457-7 | LDL Cholesterol Calculated | mg/dL | < 100 |
| ALT | 1742-6 | Alanine Aminotransferase (ALT/SGPT) | U/L | 10 - 45 |
| AST | 1920-8 | Aspartate Aminotransferase (AST/SGOT) | U/L | 10 - 40 |
| ALP | 6768-6 | Alkaline Phosphatase | U/L | 40 - 130 |
| GGT | 2324-2 | Gamma-Glutamyl Transferase | U/L | 9 - 48 |
| TBIL | 1975-2 | Total Bilirubin | mg/dL | 0.2 - 1.2 |
5. Mindray BS-600 Biomedical Engineering Field Notes & Troubleshooting
Verified against Mindray BS-600 User Manual & Mindray BS-600 LIS Communication Manual
Serum Index (HIL) Interlocks: The Mindray BS-600 pre-scans serum absorbance. AILS LIMS evaluates HIL flags against analyte interference thresholds before publishing Clinical chemistry, serum indices (HIL), specific ...
Photometer & Cuvette Integrity: Verify that reaction carousel water blank optical checks pass daily on Mindray BS-600. Dirty cuvettes trigger absorbance drift and false abnormal flags as documented in Mindray BS-600 User Manual.
Protocol Framing Verification: The Mindray BS-600 transmits data under HL7 v2.5 / TCP MLLP. Confirm that ACK/NAK line flow control or MLLP envelope bytes (<VT>...<FS><CR>) match AILS Gateway driver settings.
Reagent Carousel Temperature: Keep onboard reagent carousels between 2°C - 8°C. AILS Gateway monitors temperature status messages from Mindray BS-600 to halt runs during chiller malfunctions.
ISE Calibration Drift: For models equipped with Ion-Selective Electrodes (Na+, K+, Cl-), ensure slope calibration voltages meet Nernst equation limits specified in Mindray BS-600 User Manual.
Frequently Asked Questions: Mindray BS-600 LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What pinouts and network settings are required for the Mindray BS-600 LIS connection?
The Mindray BS-600 connects via Ethernet RJ45 operating under HL7 v2.5 / TCP MLLP. For network configurations, configure the instrument with a static IP and point to the AILS Gateway socket listener on 100 Mbps TCP Socket. The driver maintains an persistent MLLP TCP socket with automatic reconnect.
Q: What is the workflow when loading barcoded tubes onto the Mindray BS-600?
The Mindray BS-600 executes automated positive specimen identification. AILS Gateway matches tube accession numbers against laboratory orders, routing priority STAT orders ahead of routine tests.
Q: How does AILS LIMS process serum indices (Hemolysis, Icterus, Lipemia) from the Mindray BS-600?
The Mindray BS-600 pre-scans specimens and transmits HIL indices alongside chemistry values. AILS LIMS evaluates whether interferent levels exceed analyte-specific thresholds, automatically holding affected tests and alerting lab supervisors.
Q: How does AILS manage Westgard multirule QC validation on the Mindray BS-600?
AILS LIMS verifies daily calibration and control runs for Mindray BS-600. If QC values drift outside acceptable standard deviation limits, the system interlocks patient reporting until a re-calibration run is approved.
