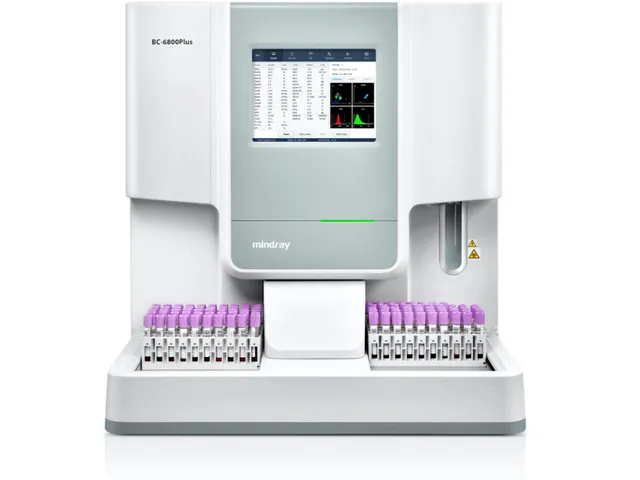

Mindray BC-6800 / BC-6200 Bi-Directional LIS Interfacing Guide
Biomedical driver specifications, physical port pinouts, and automated LOINC dictionary mapping for Mindray BC-6800 / BC-6200.
1. Mindray BC-6800 / BC-6200 Diagnostic Architecture & Clinical Use
The Mindray BC-6800 / BC-6200 (Mindray Medical International) operates as a clinical Hematology analyzer engineered specifically for High-end automated hematology line with SF Cube 3D cellular analysis technology for complex pathology referrals.. Connecting the Mindray BC-6800 / BC-6200 to AILS Cloud LIMS eliminates manual transcription, automatically verifies 80 µL whole blood auto rack mode specimen aspirations, and scales sample processing up to 125 samples/hour (CBC+DIFF), 90 samples/hour (with Retic). The pre-configured driver interfaces over Gigabit Ethernet LAN executing HL7 v2.5 / v2.5.1 TCP MLLP standards documented in Mindray BC-6800 Auto Hematology Analyzer Operator Manual.
AILS Gateway downloads scheduled test requests directly into the Mindray BC-6800 / BC-6200 onboard memory. The platform validates sample fluidic requirements (80 µL whole blood auto rack mode) and confirms channel availability, eliminating manual batch setup on the instrument console.
Observations exceeding critical panic limits trigger instant automated notifications via SMS, push alert, and highlighted dashboard banners. AILS LIMS logs mandatory read-back acknowledgments to maintain ISO 15189 and CAP accreditation compliance.
2. Mindray BC-6800 / BC-6200 TCP/IP Socket & Network Configuration
Gigabit Ethernet LAN | Settings: 100/1000 Mbps TCP Socket. Handshake: Full bi-directional query, auto-rerun and reflex test orders
[Mindray BC-6800 / BC-6200 Ethernet IP] [AILS Gateway Socket Router] IP Assignment: Static / Fixed DHCP <=======> Listening Host IP: 192.168.1.X Target Port: Port 5000 / 5100 MLLP Frame Start: <VT> (ASCII 0x0B) --------> Buffer Allocation Frame End: <FS><CR> (0x1C 0x0D) --------> Checksum & Commit Record Handshake: Bi-Directional Commit ACK / DSR^Q03 Query-Response
3. Mindray BC-6800 / BC-6200 HL7 v2.x Message Stream
Below is a validated communication frame transmitted between the Mindray BC-6800 / BC-6200 and AILS LIS middleware:
MSH|^~\&|Mindray_BC_6800___BC_6200|Mindray|AILS_GATEWAY|CENTRAL_LAB|20261030122400||ORU^R01|MSG_50014|P|2.5 PID|1||PAT842014||DOE^PATIENT_14||19840512|M OBR|1|ORD_ACC20261014|ACC20261014|Mindray BC-6800 / BC-6200^Profile|||20261030122400 OBX|1|NM|742-7^MONO#^LN||0.92|10*3/uL|0.20 - 1.00|N|||F|||20261030122400 OBX|2|NM|711-2^EO#^LN||0.72|10*3/uL|0.02 - 0.50|N|||F|||20261030122400 OBX|3|NM|704-7^BASO#^LN||0.71|10*3/uL|0.01 - 0.15|N|||F|||20261030122400 OBX|4|NM|770-8^NEUT%^LN||43.90|%|40.0 - 75.0|N|||F|||20261030122400 OBX|5|NM|736-9^LYMPH%^LN||22.30|%|20.0 - 45.0|N|||F|||20261030122400 OBX|6|NM|5905-5^MONO%^LN||2.86|%|2.0 - 10.0|N|||F|||20261030122400
4. Mindray BC-6800 / BC-6200 Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| MONO# | 742-7 | Absolute Monocyte Count | 10*3/uL | 0.20 - 1.00 |
| EO# | 711-2 | Absolute Eosinophil Count | 10*3/uL | 0.02 - 0.50 |
| BASO# | 704-7 | Absolute Basophil Count | 10*3/uL | 0.01 - 0.15 |
| NEUT% | 770-8 | Neutrophil Percentage | % | 40.0 - 75.0 |
| LYMPH% | 736-9 | Lymphocyte Percentage | % | 20.0 - 45.0 |
| MONO% | 5905-5 | Monocyte Percentage | % | 2.0 - 10.0 |
5. Mindray BC-6800 / BC-6200 Biomedical Engineering Field Notes & Troubleshooting
Verified against Mindray BC-6800 Auto Hematology Analyzer Operator Manual & Mindray BC-6800 Series Host Interface Manual (HL7 Standard)
Aspiration Draw Volume: The Mindray BC-6800 / BC-6200 requires 80 µL whole blood auto rack mode. Sub-optimal draws or partially clotted specimens cause sample needle clogging and flag false thrombocytopenia in patient runs.
Cabling & Port Pinout: When connecting the Mindray BC-6800 / BC-6200 over Gigabit Ethernet LAN, configure host settings strictly to 100/1000 Mbps TCP Socket. Mismatched stop bits or parity will trigger framing errors (0x15 NAK) in the AILS serial daemon.
Differential Flagging & Scattergrams: Verify that immature granulocyte, erythroblast (NRBC), and platelet clump flags generated by Mindray BC-6800 / BC-6200 are mapped to clinical review holds in AILS LIMS.
Bi-Directional Query Timeout: If Mindray BC-6800 / BC-6200 queries AILS Gateway for test orders, ensure the host timeout is configured to >= 3.0 seconds to prevent query re-transmission during peak batch accessioning.
Preventative Flush & Shutdown: Strictly follow daily sodium hypochlorite cleaning cycles specified in Mindray BC-6800 Auto Hematology Analyzer Operator Manual. Lyse reagent crystallization on the aperture orifice causes calibration drift across 37 reportable parameters including Reticulocytes, ...
Frequently Asked Questions: Mindray BC-6800 / BC-6200 LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What pinouts and network settings are required for the Mindray BC-6800 / BC-6200 LIS connection?
The Mindray BC-6800 / BC-6200 connects via Gigabit Ethernet LAN operating under HL7 v2.5 / v2.5.1 TCP MLLP. For network configurations, configure the instrument with a static IP and point to the AILS Gateway socket listener on 100/1000 Mbps TCP Socket. The driver maintains an persistent MLLP TCP socket with automatic reconnect.
Q: What is the workflow when loading barcoded tubes onto the Mindray BC-6800 / BC-6200?
The Mindray BC-6800 / BC-6200 executes automated positive specimen identification. AILS Gateway matches tube accession numbers against laboratory orders, routing priority STAT orders ahead of routine tests.
Q: How are 5-part differentials, flags, and scattergrams handled from the Mindray BC-6800 / BC-6200?
AILS Gateway parses numerical differential counts and qualitative flags (such as immature granulocytes, blasts, or platelet clumps) emitted by the Mindray BC-6800 / BC-6200. Flagged samples are automatically held for manual peripheral blood smear review.
Q: How does AILS manage Westgard multirule QC validation on the Mindray BC-6800 / BC-6200?
AILS LIMS verifies daily calibration and control runs for Mindray BC-6800 / BC-6200. If QC values drift outside acceptable standard deviation limits, the system interlocks patient reporting until a re-calibration run is approved.
