Mindray BC-6000 Bi-Directional LIS Interfacing Guide
Validated middleware driver and socket protocol reference for Mindray BC-6000 with offline buffer synchronization.
1. Mindray BC-6000 Diagnostic Architecture & Clinical Use

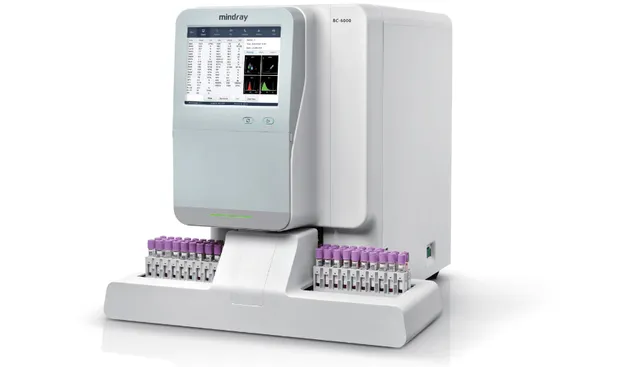

The Mindray BC-6000 (Mindray Medical International) operates as a clinical Hematology analyzer engineered specifically for 5-part differential hematology platform with integrated NRBC reporting in every routine CBC test.. Connecting the Mindray BC-6000 to AILS Cloud LIMS eliminates manual transcription, automatically verifies 32 µL (Whole blood closed sampler) specimen aspirations, and scales sample processing up to 110 samples/hour. The pre-configured driver interfaces over Ethernet RJ45 executing HL7 v2.5 TCP MLLP standards documented in Mindray BC-6000 User Guide.
Operating under HL7 v2.5 TCP MLLP, the Mindray BC-6000 and AILS Gateway maintain synchronized closed-loop messaging. Reflex testing rules and auto-dilution recalculations are exchanged dynamically based on initial screening results and diagnostic flags.
AILS Gateway tracks sensor slopes, baseline absorbance, and optical zeroing trends over successive batches on the Mindray BC-6000. Progressive drift triggers preventative maintenance warnings before assay precision is compromised.
2. Mindray BC-6000 TCP/IP Socket & Network Configuration
Ethernet RJ45 | Settings: TCP Socket (Port 5100). Handshake: HL7 ORU^R01 with ACK
[Mindray BC-6000 Ethernet IP] [AILS Gateway Socket Router] IP Assignment: Static / Fixed DHCP <=======> Listening Host IP: 192.168.1.X Target Port: Port 5100 Frame Start: <VT> (ASCII 0x0B) --------> Buffer Allocation Frame End: <FS><CR> (0x1C 0x0D) --------> Checksum & Commit Record Handshake: Bi-Directional Commit ACK / DSR^Q03 Query-Response
3. Mindray BC-6000 HL7 v2.x Message Stream
Below is a validated communication frame transmitted between the Mindray BC-6000 and AILS LIS middleware:
MSH|^~\&|Mindray_BC_6000|Mindray|AILS_GATEWAY|CENTRAL_LAB|20261030122500||ORU^R01|MSG_50015|P|2.5 PID|1||PAT842015||DOE^PATIENT_15||19840512|M OBR|1|ORD_ACC20261015|ACC20261015|Mindray BC-6000^Profile|||20261030122500 OBX|1|NM|777-3^PLT^LN||162.75|10*3/uL|150 - 450|N|||F|||20261030122500 OBX|2|NM|751-8^NEUT#^LN||2.91|10*3/uL|2.00 - 7.50|N|||F|||20261030122500 OBX|3|NM|731-0^LYMPH#^LN||1.83|10*3/uL|1.00 - 3.50|N|||F|||20261030122500 OBX|4|NM|742-7^MONO#^LN||0.97|10*3/uL|0.20 - 1.00|N|||F|||20261030122500 OBX|5|NM|711-2^EO#^LN||0.77|10*3/uL|0.02 - 0.50|N|||F|||20261030122500 OBX|6|NM|704-7^BASO#^LN||0.76|10*3/uL|0.01 - 0.15|N|||F|||20261030122500
4. Mindray BC-6000 Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| PLT | 777-3 | Platelet Count | 10*3/uL | 150 - 450 |
| NEUT# | 751-8 | Absolute Neutrophil Count | 10*3/uL | 2.00 - 7.50 |
| LYMPH# | 731-0 | Absolute Lymphocyte Count | 10*3/uL | 1.00 - 3.50 |
| MONO# | 742-7 | Absolute Monocyte Count | 10*3/uL | 0.20 - 1.00 |
| EO# | 711-2 | Absolute Eosinophil Count | 10*3/uL | 0.02 - 0.50 |
| BASO# | 704-7 | Absolute Basophil Count | 10*3/uL | 0.01 - 0.15 |
5. Mindray BC-6000 Biomedical Engineering Field Notes & Troubleshooting
Verified against Mindray BC-6000 User Guide & Mindray BC-6000 Communication Protocol Guide
Aspiration Draw Volume: The Mindray BC-6000 requires 32 µL (Whole blood closed sampler). Sub-optimal draws or partially clotted specimens cause sample needle clogging and flag false thrombocytopenia in patient runs.
Cabling & Port Pinout: When connecting the Mindray BC-6000 over Ethernet RJ45, configure host settings strictly to TCP Socket (Port 5100). Mismatched stop bits or parity will trigger framing errors (0x15 NAK) in the AILS serial daemon.
Differential Flagging & Scattergrams: Verify that immature granulocyte, erythroblast (NRBC), and platelet clump flags generated by Mindray BC-6000 are mapped to clinical review holds in AILS LIMS.
Bi-Directional Query Timeout: If Mindray BC-6000 queries AILS Gateway for test orders, ensure the host timeout is configured to >= 3.0 seconds to prevent query re-transmission during peak batch accessioning.
Preventative Flush & Shutdown: Strictly follow daily sodium hypochlorite cleaning cycles specified in Mindray BC-6000 User Guide. Lyse reagent crystallization on the aperture orifice causes calibration drift across 29 reportable parameters including NRBC%, NRBC# an...
Frequently Asked Questions: Mindray BC-6000 LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What pinouts and network settings are required for the Mindray BC-6000 LIS connection?
The Mindray BC-6000 connects via Ethernet RJ45 operating under HL7 v2.5 TCP MLLP. For network configurations, configure the instrument with a static IP and point to the AILS Gateway socket listener on TCP Socket (Port 5100). The driver maintains an persistent MLLP TCP socket with automatic reconnect.
Q: What is the workflow when loading barcoded tubes onto the Mindray BC-6000?
The Mindray BC-6000 executes automated positive specimen identification. AILS Gateway matches tube accession numbers against laboratory orders, routing priority STAT orders ahead of routine tests.
Q: How are 5-part differentials, flags, and scattergrams handled from the Mindray BC-6000?
AILS Gateway parses numerical differential counts and qualitative flags (such as immature granulocytes, blasts, or platelet clumps) emitted by the Mindray BC-6000. Flagged samples are automatically held for manual peripheral blood smear review.
Q: How does AILS manage Westgard multirule QC validation on the Mindray BC-6000?
AILS LIMS verifies daily calibration and control runs for Mindray BC-6000. If QC values drift outside acceptable standard deviation limits, the system interlocks patient reporting until a re-calibration run is approved.
