Horiba Pentra 60C+ Bi-Directional LIS Interfacing Guide
Complete engineering specification, HL7/ASTM protocols, pinouts, and parameter mapping for Horiba Pentra 60C+ on AILS Cloud LIMS.
1. Horiba Pentra 60C+ Diagnostic Architecture & Clinical Use

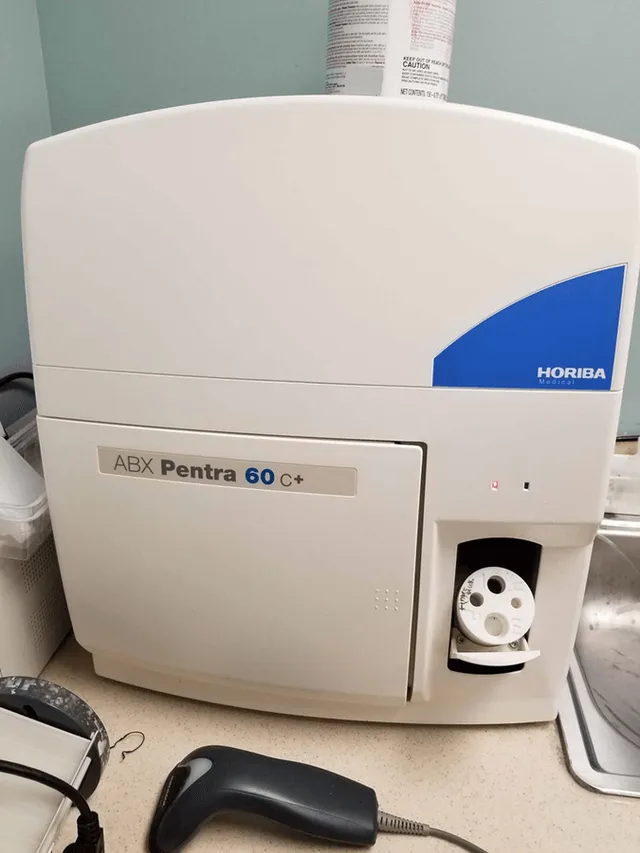

Designed to streamline diagnostic testing, the Horiba Pentra 60C+ (Horiba Medical) is an automated Hematology system built for Compact 5-part differential analyzer with MDSS technology and cytochemical staining.. Interfacing with AILS Cloud LIMS provides sub-second worklist synchronization, automated delta checks, and seamless specimen tracking at 60 samples/hour. Physical connectivity operates over RS-232 Serial DB9 Female, parsing multi-parameter results (26 parameters including CBC + 5-part DIFF + LMNE matrix) in alignment with Horiba Pentra 60C+ User Manual.
When tube racks enter the aspiration carousel of the Horiba Pentra 60C+, tube positions and accession numbers are validated in real time against active laboratory orders. AILS Gateway synchronizes with the instrument controller over RS-232 Serial DB9 Female, ensuring error-free specimen assignment prior to fluidic sampling of 53 µL whole blood.
Patient results from the Horiba Pentra 60C+ are cross-referenced against historical patient baselines in real time. Velocity checks and biological within-subject variation (CVi) limits flag implausible clinical shifts for supervisory pathologist review before final sign-off.
2. Horiba Pentra 60C+ RS-232 Serial Port & Pinout Configuration
RS-232 Serial DB9 Female | Settings: 9600 bps, 8-N-1. Handshake: Serial text packet or local access database ODBC sync
[Horiba Pentra 60C+ RS-232 Port] [AILS Gateway COM Interface] Pin 2 (TxD / Data Out) ---------> Pin 2 (RxD / Data In) Pin 3 (RxD / Data In) <--------- Pin 3 (TxD / Data Out) Pin 5 (GND / Signal) <========> Pin 5 (GND / Signal) Pin 7 (RTS) & Pin 8 (CTS) [Hardware Flow Control / Loopback] Baud Rate: 9600 bps, 8-N-1 | Data: 8-Bit | Parity: None | Stop: 1-Bit Shielding: Braided Foil Screened Twisted Pair (Max 15m)
3. Horiba Pentra 60C+ ASTM E1394 Record Frame
Below is a validated communication frame transmitted between the Horiba Pentra 60C+ and AILS LIS middleware:
H|\^&|||Horiba Pentra 60C+^Host|||||||P|1|20261030122700 P|1|||PAT842017||DOE^PATIENT_17||19780820|F O|1|ACC20261017||^^^Horiba Pentra 60C+_PANEL|R|20261030122700|||||A R|1|^^^HCT|43.56|%|41.0 - 50.0|N||F||Hor|20261030122700 R|2|^^^MCV|84.51|fL|80.0 - 100.0|N||F||Hor|20261030122700 R|3|^^^MCH|28.86|pg|27.0 - 33.0|N||F||Hor|20261030122700 R|4|^^^MCHC|34.11|g/dL|32.0 - 36.0|N||F||Hor|20261030122700 R|5|^^^PLT|158.01|10*3/uL|150 - 450|N||F||Hor|20261030122700 R|6|^^^NEUT#|2.61|10*3/uL|2.00 - 7.50|N||F||Hor|20261030122700 L|1|N
4. Horiba Pentra 60C+ Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| HCT | 4544-3 | Hematocrit | % | 41.0 - 50.0 |
| MCV | 787-2 | Mean Corpuscular Volume | fL | 80.0 - 100.0 |
| MCH | 785-6 | Mean Corpuscular Hemoglobin | pg | 27.0 - 33.0 |
| MCHC | 786-4 | Mean Corpuscular HGB Conc. | g/dL | 32.0 - 36.0 |
| PLT | 777-3 | Platelet Count | 10*3/uL | 150 - 450 |
| NEUT# | 751-8 | Absolute Neutrophil Count | 10*3/uL | 2.00 - 7.50 |
5. Horiba Pentra 60C+ Biomedical Engineering Field Notes & Troubleshooting
Verified against Horiba Pentra 60C+ User Manual & Horiba Pentra 60C+ Serial Transmission Protocol Document
Aspiration Draw Volume: The Horiba Pentra 60C+ requires 53 µL whole blood. Sub-optimal draws or partially clotted specimens cause sample needle clogging and flag false thrombocytopenia in patient runs.
Interface Communication Settings: Configure the RS-232 Serial DB9 Female port on the Horiba Pentra 60C+ to 9600 bps, 8-N-1. Ensure hardware flow control (RTS/CTS) is set according to Horiba Pentra 60C+ Serial Transmission Protocol Document to avoid buffer overrun.
Differential Flagging & Scattergrams: Verify that immature granulocyte, erythroblast (NRBC), and platelet clump flags generated by Horiba Pentra 60C+ are mapped to clinical review holds in AILS LIMS.
Barcode Accessioning Alignment: The onboard barcode scanner on Horiba Pentra 60C+ must be set to Code 128 / Interleaved 2 of 5 with check digits enabled, preventing mismatched accession numbers in bi-directional queries.
Preventative Flush & Shutdown: Strictly follow daily sodium hypochlorite cleaning cycles specified in Horiba Pentra 60C+ User Manual. Lyse reagent crystallization on the aperture orifice causes calibration drift across 26 parameters including CBC + 5-part DIFF + LMNE m...
Frequently Asked Questions: Horiba Pentra 60C+ LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: How do I physically connect the Horiba Pentra 60C+ to AILS Cloud LIMS?
The Horiba Pentra 60C+ interfaces using a serial RS-232 Serial DB9 Female connection with parameters configured to 9600 bps, 8-N-1. A dedicated null-modem DB9/DB25 cable with hardware flow control connects to the AILS Gateway hardware edge device or COM-to-IP terminal server.
Q: Does the Horiba Pentra 60C+ support barcode query and automated worklist download?
Yes, the Horiba Pentra 60C+ supports bi-directional query. As racks advance, tube barcodes are checked in real time against AILS LIMS orders, eliminating manual batch entry and sustaining the 60 samples/hour rating specified in Horiba Pentra 60C+ User Manual.
Q: How are 5-part differentials, flags, and scattergrams handled from the Horiba Pentra 60C+?
AILS Gateway parses numerical differential counts and qualitative flags (such as immature granulocytes, blasts, or platelet clumps) emitted by the Horiba Pentra 60C+. Flagged samples are automatically held for manual peripheral blood smear review.
Q: What quality control and critical alert capabilities exist for the Horiba Pentra 60C+?
Quality control samples run on Horiba Pentra 60C+ are automatically logged into Levey-Jennings charts in AILS LIMS. Analytical runs violating 1-3s or 2-2s Westgard rules halt batch validation and alert the quality manager.
