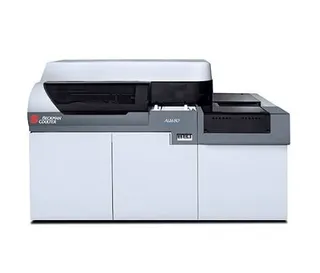

Beckman Coulter AU680 Bi-Directional LIS Interfacing Guide
Validated middleware driver and socket protocol reference for Beckman Coulter AU680 with offline buffer synchronization.
1. Beckman Coulter AU680 Diagnostic Architecture & Clinical Use
Engineered to optimize analytical precision, the Beckman Coulter Beckman Coulter AU680 functions as a dedicated Biochemistry platform supporting High-speed automated clinical chemistry system for medium-to-large hospital and commercial pathology labs.. Integrating the instrument with AILS Cloud LIMS establishes an authenticated digital data pipeline: specimen tubes requiring 1.6 - 25 µL are tracked by tube barcode, processed at speeds up to 800 photometric tests/hour, up to 1,200 with ISE, and committed to electronic medical records via compliant ASTM E1381 / E1394 protocols.
Operating under ASTM E1381 / E1394, the Beckman Coulter AU680 and AILS Gateway maintain synchronized closed-loop messaging. Reflex testing rules and auto-dilution recalculations are exchanged dynamically based on initial screening results and diagnostic flags.
AILS Gateway tracks sensor slopes, baseline absorbance, and optical zeroing trends over successive batches on the Beckman Coulter AU680. Progressive drift triggers preventative maintenance warnings before assay precision is compromised.
2. Beckman Coulter AU680 RS-232 Serial Port & Pinout Configuration
Ethernet RJ45 / RS-232 Serial | Settings: 19200 bps / 100 Mbps TCP/IP. Handshake: Host query mode with automatic reflex test scheduling
[Beckman Coulter AU680 RS-232 Port] [AILS Gateway COM Interface] Pin 2 (TxD / Data Out) ---------> Pin 2 (RxD / Data In) Pin 3 (RxD / Data In) <--------- Pin 3 (TxD / Data Out) Pin 5 (GND / Signal) <========> Pin 5 (GND / Signal) Pin 7 (RTS) & Pin 8 (CTS) [Hardware Flow Control / Loopback] Baud Rate: 19200 bps / 100 Mbps TCP/IP | Data: 8-Bit | Parity: None | Stop: 1-Bit Shielding: Braided Foil Screened Twisted Pair (Max 15m)
3. Beckman Coulter AU680 ASTM E1394 Record Frame
Below is a validated communication frame transmitted between the Beckman Coulter AU680 and AILS LIS middleware:
H|\^&|||Beckman Coulter AU680^Host|||||||P|1|20261030124900 P|1|||PAT842039||DOE^PATIENT_39||19780820|F O|1|ACC20261039||^^^Beckman Coulter AU680_PANEL|R|20261030124900|||||A R|1|^^^HDL|43.17|mg/dL|> 40|N||F||Bec|20261030124900 R|2|^^^LDL|106.17|mg/dL|< 100|N||F||Bec|20261030124900 R|3|^^^ALT|11.67|U/L|10 - 45|N||F||Bec|20261030124900 R|4|^^^AST|11.67|U/L|10 - 40|N||F||Bec|20261030124900 R|5|^^^ALP|43.17|U/L|40 - 130|N||F||Bec|20261030124900 R|6|^^^GGT|10.62|U/L|9 - 48|N||F||Bec|20261030124900 L|1|N
4. Beckman Coulter AU680 Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| HDL | 2085-9 | HDL Cholesterol Direct | mg/dL | > 40 |
| LDL | 13457-7 | LDL Cholesterol Calculated | mg/dL | < 100 |
| ALT | 1742-6 | Alanine Aminotransferase (ALT/SGPT) | U/L | 10 - 45 |
| AST | 1920-8 | Aspartate Aminotransferase (AST/SGOT) | U/L | 10 - 40 |
| ALP | 6768-6 | Alkaline Phosphatase | U/L | 40 - 130 |
| GGT | 2324-2 | Gamma-Glutamyl Transferase | U/L | 9 - 48 |
5. Beckman Coulter AU680 Biomedical Engineering Field Notes & Troubleshooting
Verified against Beckman Coulter AU680 User Guide & Beckman Coulter AU-Series LIS Host Interface Protocol Reference
Serum Index (HIL) Interlocks: The Beckman Coulter AU680 pre-scans serum absorbance. AILS LIMS evaluates HIL flags against analyte interference thresholds before publishing High-throughput routine and STAT chemistry profile...
Photometer & Cuvette Integrity: Verify that reaction carousel water blank optical checks pass daily on Beckman Coulter AU680. Dirty cuvettes trigger absorbance drift and false abnormal flags as documented in Beckman Coulter AU680 User Guide.
Protocol Framing Verification: The Beckman Coulter AU680 transmits data under ASTM E1381 / E1394. Confirm that ACK/NAK line flow control or MLLP envelope bytes (<VT>...<FS><CR>) match AILS Gateway driver settings.
Reagent Carousel Temperature: Keep onboard reagent carousels between 2°C - 8°C. AILS Gateway monitors temperature status messages from Beckman Coulter AU680 to halt runs during chiller malfunctions.
ISE Calibration Drift: For models equipped with Ion-Selective Electrodes (Na+, K+, Cl-), ensure slope calibration voltages meet Nernst equation limits specified in Beckman Coulter AU680 User Guide.
Frequently Asked Questions: Beckman Coulter AU680 LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What pinouts and network settings are required for the Beckman Coulter AU680 LIS connection?
The Beckman Coulter AU680 interfaces using a serial Ethernet RJ45 / RS-232 Serial connection with parameters configured to 19200 bps / 100 Mbps TCP/IP. A dedicated null-modem DB9/DB25 cable with hardware flow control connects to the AILS Gateway hardware edge device or COM-to-IP terminal server.
Q: What is the workflow when loading barcoded tubes onto the Beckman Coulter AU680?
The Beckman Coulter AU680 executes automated positive specimen identification. AILS Gateway matches tube accession numbers against laboratory orders, routing priority STAT orders ahead of routine tests.
Q: How does AILS LIMS process serum indices (Hemolysis, Icterus, Lipemia) from the Beckman Coulter AU680?
The Beckman Coulter AU680 pre-scans specimens and transmits HIL indices alongside chemistry values. AILS LIMS evaluates whether interferent levels exceed analyte-specific thresholds, automatically holding affected tests and alerting lab supervisors.
Q: How does AILS manage Westgard multirule QC validation on the Beckman Coulter AU680?
AILS LIMS verifies daily calibration and control runs for Beckman Coulter AU680. If QC values drift outside acceptable standard deviation limits, the system interlocks patient reporting until a re-calibration run is approved.
