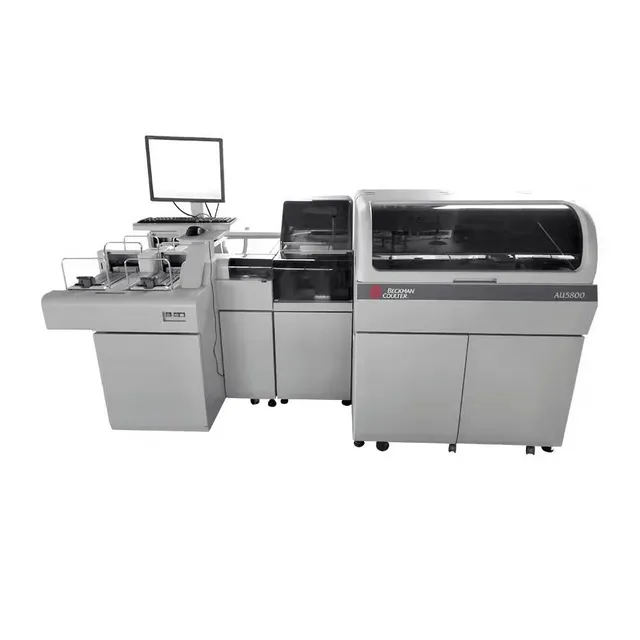

Beckman Coulter AU5800 Bi-Directional LIS Interfacing Guide
Technical interfacing guide: bi-directional query, sample aspiration verification, and certified driver configuration for Beckman Coulter AU5800.
1. Beckman Coulter AU5800 Diagnostic Architecture & Clinical Use
In high-volume clinical pathology environments, the Beckman Coulter AU5800 (Beckman Coulter) provides robust Biochemistry diagnostic capabilities designed for Ultra-high-volume scalable clinical chemistry platform designed for massive regional laboratory networks.. Interface connectivity via AILS Gateway activates bidirectional sample accessioning, automated dilution factor management, and real-time result dispatch up to 2,000 to 9,800 tests/hour depending on module configuration. The system strictly conforms to physical interface requirements (Ethernet LAN with dedicated System Processing Controller) and official manufacturer guidelines (Beckman Coulter AU5800 Chemistry System Operator Manual).
Emergency STAT specimens loaded onto the Beckman Coulter AU5800 trigger high-priority interrupt queries in AILS Gateway. The system pushes STAT test profiles to the top of the analytical queue without interrupting ongoing routine batches, sustaining high processing speeds up to 2,000 to 9,800 tests/hour depending on module configuration.
Preanalytical sample integrity alarms, clot alerts, and spectrophotometric serum indices (Hemolysis, Icterus, Lipemia) reported by the Beckman Coulter AU5800 are evaluated by AILS clinical logic. Tests susceptible to optical interference are automatically placed on review hold.
2. Beckman Coulter AU5800 TCP/IP Socket & Network Configuration
Ethernet LAN with dedicated System Processing Controller | Settings: 100 Mbps TCP/IP. Handshake: Continuous rack track query and real-time result streaming with multi-wavelength absorbance curves
[Beckman Coulter AU5800 Ethernet IP] [AILS Gateway Socket Router] IP Assignment: Static / Fixed DHCP <=======> Listening Host IP: 192.168.1.X Target Port: Port 5000 / 5100 MLLP Frame Start: <VT> (ASCII 0x0B) --------> Buffer Allocation Frame End: <FS><CR> (0x1C 0x0D) --------> Checksum & Commit Record Handshake: Bi-Directional Commit ACK / DSR^Q03 Query-Response
3. Beckman Coulter AU5800 ASTM E1394 Record Frame
Below is a validated communication frame transmitted between the Beckman Coulter AU5800 and AILS LIS middleware:
H|\^&|||Beckman Coulter AU5800^Host|||||||P|1|20261030121000 P|1|||PAT842040||DOE^PATIENT_40||19780820|F O|1|ACC20261040||^^^Beckman Coulter AU5800_PANEL|R|20261030121000|||||A R|1|^^^AST|11.70|U/L|10 - 40|N||F||Bec|20261030121000 R|2|^^^ALP|43.20|U/L|40 - 130|N||F||Bec|20261030121000 R|3|^^^GGT|10.65|U/L|9 - 48|N||F||Bec|20261030121000 R|4|^^^TBIL|1.41|mg/dL|0.2 - 1.2|N||F||Bec|20261030121000 R|5|^^^DBIL|1.20|mg/dL|0.0 - 0.3|N||F||Bec|20261030121000 R|6|^^^TP|7.92|g/dL|6.4 - 8.3|N||F||Bec|20261030121000 L|1|N
4. Beckman Coulter AU5800 Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| AST | 1920-8 | Aspartate Aminotransferase (AST/SGOT) | U/L | 10 - 40 |
| ALP | 6768-6 | Alkaline Phosphatase | U/L | 40 - 130 |
| GGT | 2324-2 | Gamma-Glutamyl Transferase | U/L | 9 - 48 |
| TBIL | 1975-2 | Total Bilirubin | mg/dL | 0.2 - 1.2 |
| DBIL | 1968-7 | Direct Bilirubin | mg/dL | 0.0 - 0.3 |
| TP | 2885-2 | Total Protein (Biuret) | g/dL | 6.4 - 8.3 |
5. Beckman Coulter AU5800 Biomedical Engineering Field Notes & Troubleshooting
Verified against Beckman Coulter AU5800 Chemistry System Operator Manual & Beckman Coulter AU5800 Host Communication Technical Manual
Sample Blanking & Serum Indices: Configure the Beckman Coulter AU5800 to transmit Hemolysis (H), Icterus (I), and Lipemia (L) indices directly into AILS LIMS. High lipemic turbidity will automatically flag kinetic photometric readings for manual review.
Substrate Exhaustion Flags: Kinetic assays (e.g. ALT, AST, LDH) on Beckman Coulter AU5800 can experience substrate exhaustion at high enzyme concentrations. Ensure AILS LIMS parses dilution reflex triggers.
Protocol Framing Verification: The Beckman Coulter AU5800 transmits data under ASTM E1381 / E1394 over TCP/IP LAN. Confirm that ACK/NAK line flow control or MLLP envelope bytes (<VT>...<FS><CR>) match AILS Gateway driver settings.
Reagent Carousel Temperature: Keep onboard reagent carousels between 2°C - 8°C. AILS Gateway monitors temperature status messages from Beckman Coulter AU5800 to halt runs during chiller malfunctions.
ISE Calibration Drift: For models equipped with Ion-Selective Electrodes (Na+, K+, Cl-), ensure slope calibration voltages meet Nernst equation limits specified in Beckman Coulter AU5800 Chemistry System Operator Manual.
Frequently Asked Questions: Beckman Coulter AU5800 LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What are the exact communication port settings for the Beckman Coulter AU5800 interface?
The Beckman Coulter AU5800 connects via Ethernet LAN with dedicated System Processing Controller operating under ASTM E1381 / E1394 over TCP/IP LAN. For network configurations, configure the instrument with a static IP and point to the AILS Gateway socket listener on 100 Mbps TCP/IP. The driver maintains an persistent MLLP TCP socket with automatic reconnect.
Q: How are patient sample barcodes processed between Beckman Coulter AU5800 and AILS LIMS?
Specimen barcodes are scanned as tubes enter the aspiration station. AILS Gateway verifies the accession number and transmits assigned panels (Comprehensive high-volume chemistry, electrolytes, proteins,...) to the analyzer firmware instantly.
Q: How does AILS LIMS process serum indices (Hemolysis, Icterus, Lipemia) from the Beckman Coulter AU5800?
The Beckman Coulter AU5800 pre-scans specimens and transmits HIL indices alongside chemistry values. AILS LIMS evaluates whether interferent levels exceed analyte-specific thresholds, automatically holding affected tests and alerting lab supervisors.
Q: How does AILS LIMS alert staff to critical panic results from the Beckman Coulter AU5800?
Critical panic limits trigger immediate visual popups on laboratory dashboard screens and SMS alerts to attending physicians, creating a permanent timestamped audit trail compliant with ISO 15189.
