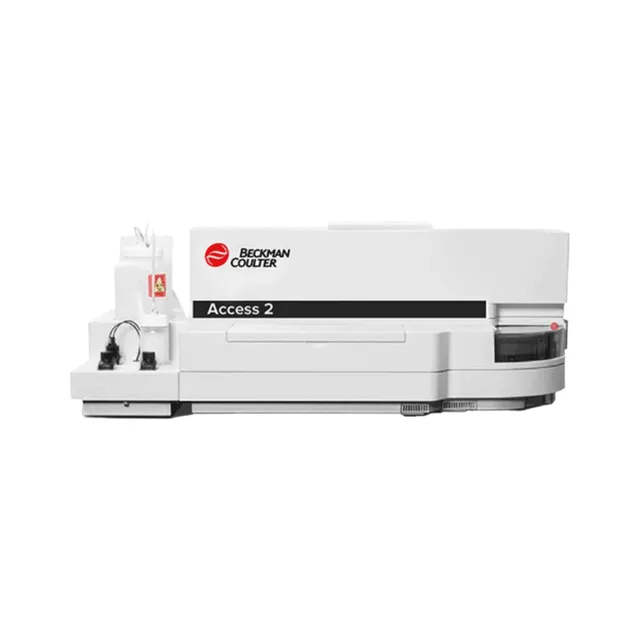

Beckman Coulter Access 2 / DxI 800 Bi-Directional LIS Interfacing Guide
Technical interfacing guide: bi-directional query, sample aspiration verification, and certified driver configuration for Beckman Coulter Access 2 / DxI 800.
1. Beckman Coulter Access 2 / DxI 800 Diagnostic Architecture & Clinical Use
Operating at the core of clinical laboratory operations, the Beckman Coulter Access 2 / DxI 800 from Beckman Coulter delivers specialized Immunoassay diagnostics for Chemiluminescent immunoassay system utilizing magnetic particles and dioxetane chemiluminescence.. Direct integration with AILS Cloud LIMS establishes an automated bi-directional link that eliminates lost results, enforces sample volume compliance of 5 - 50 µL, and maximizes walkaway processing up to 100 tests/hour (Access 2), up to 400 tests/hour (DxI 800) using authentic ASTM E1381 / E1394-91 message framing.
Emergency STAT specimens loaded onto the Beckman Coulter Access 2 / DxI 800 trigger high-priority interrupt queries in AILS Gateway. The system pushes STAT test profiles to the top of the analytical queue without interrupting ongoing routine batches, sustaining high processing speeds up to 100 tests/hour (Access 2), up to 400 tests/hour (DxI 800).
Preanalytical sample integrity alarms, clot alerts, and spectrophotometric serum indices (Hemolysis, Icterus, Lipemia) reported by the Beckman Coulter Access 2 / DxI 800 are evaluated by AILS clinical logic. Tests susceptible to optical interference are automatically placed on review hold.
2. Beckman Coulter Access 2 / DxI 800 RS-232 Serial Port & Pinout Configuration
RS-232C Serial DB9 / TCP/IP LAN Gateway | Settings: 9600 / 19200 bps, 8-N-1. Handshake: ASTM query and result reporting with calibrator curve parameters
[Beckman Coulter Access 2 / DxI 800 RS-232 Port] [AILS Gateway COM Interface] Pin 2 (TxD / Data Out) ---------> Pin 2 (RxD / Data In) Pin 3 (RxD / Data In) <--------- Pin 3 (TxD / Data Out) Pin 5 (GND / Signal) <========> Pin 5 (GND / Signal) Pin 7 (RTS) & Pin 8 (CTS) [Hardware Flow Control / Loopback] Baud Rate: 9600 / 19200 bps, 8-N-1 | Data: 8-Bit | Parity: None | Stop: 1-Bit Shielding: Braided Foil Screened Twisted Pair (Max 15m)
3. Beckman Coulter Access 2 / DxI 800 ASTM E1394 Record Frame
Below is a validated communication frame transmitted between the Beckman Coulter Access 2 / DxI 800 and AILS LIS middleware:
H|\^&|||Beckman Coulter Access 2 / DxI 800^Host|||||||P|1|20261030122500 P|1|||PAT842055||DOE^PATIENT_55||19780820|F O|1|ACC20261055||^^^Beckman Coulter Access 2 / DxI 800_PANEL|R|20261030122500|||||A R|1|^^^BNP|106.65|pg/mL|< 100|N||F||Bec|20261030122500 R|2|^^^FERR|33.15|ng/mL|30 - 400|N||F||Bec|20261030122500 R|3|^^^VIT-D|33.15|ng/mL|30 - 100|N||F||Bec|20261030122500 R|4|^^^B12|211.65|pg/mL|200 - 900|N||F||Bec|20261030122500 R|5|^^^CEA|4.80|ng/mL|< 3.0|N||F||Bec|20261030122500 R|6|^^^AFP|9.00|ng/mL|< 7.0|N||F||Bec|20261030122500 L|1|N
4. Beckman Coulter Access 2 / DxI 800 Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| BNP | 42637-9 | B-Type Natriuretic Peptide | pg/mL | < 100 |
| FERR | 2276-4 | Ferritin | ng/mL | 30 - 400 |
| VIT-D | 62292-8 | 25-Hydroxy Vitamin D Total | ng/mL | 30 - 100 |
| B12 | 2132-9 | Vitamin B12 (Cobalamin) | pg/mL | 200 - 900 |
| CEA | 2039-6 | Carcinoembryonic Antigen | ng/mL | < 3.0 |
| AFP | 1834-1 | Alpha-Fetoprotein | ng/mL | < 7.0 |
5. Beckman Coulter Access 2 / DxI 800 Biomedical Engineering Field Notes & Troubleshooting
Verified against Beckman Coulter Access 2 Instructions for Use (IFU) & Beckman Coulter Access Family Host Communication Manual (Doc 962164)
High-Dose Hook Effect Protection: High tumor marker or hormone concentrations on Beckman Coulter Access 2 / DxI 800 can cause antigen excess hook effects. AILS LIMS flags unexpected normal results for reflex auto-dilution.
Wash Buffer & PMT Calibration: Ensure substrate wash nozzles on Beckman Coulter Access 2 / DxI 800 are free of salt buildup. Baseline photomultiplier tube (PMT) dark current must fall within tolerances specified in Beckman Coulter Access 2 Instructions for Use (IFU).
HL7 / ASTM Message Mapping: The Beckman Coulter Access 2 / DxI 800 transmits chemiluminescent Relative Light Units (RLU) and calculated concentrations (Hormones, Reproductive endocrinology, Cardiac Trop...). Confirm LOINC code mapping in AILS master catalog.
STAT Tube Priority Lane: When loading emergency samples on Beckman Coulter Access 2 / DxI 800, utilize the dedicated STAT rack position to allow AILS Gateway to prioritize accession lookup in sub-200ms.
Reagent Lot Calibration Verification: When loading new reagent lots on Beckman Coulter Access 2 / DxI 800, verify that master calibration curve barcodes are scanned and validated against Westgard rules in AILS LIMS.
Frequently Asked Questions: Beckman Coulter Access 2 / DxI 800 LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: What are the exact communication port settings for the Beckman Coulter Access 2 / DxI 800 interface?
The Beckman Coulter Access 2 / DxI 800 interfaces using a serial RS-232C Serial DB9 / TCP/IP LAN Gateway connection with parameters configured to 9600 / 19200 bps, 8-N-1. A dedicated null-modem DB9/DB25 cable with hardware flow control connects to the AILS Gateway hardware edge device or COM-to-IP terminal server.
Q: How are patient sample barcodes processed between Beckman Coulter Access 2 / DxI 800 and AILS LIMS?
Specimen barcodes are scanned as tubes enter the aspiration station. AILS Gateway verifies the accession number and transmits assigned panels (Hormones, Reproductive endocrinology, Cardiac Troponin I, Pr...) to the analyzer firmware instantly.
Q: How are high-concentration samples and hook effects handled on the Beckman Coulter Access 2 / DxI 800?
AILS Gateway evaluates immunoassay results against historical patient baselines and clinical ranges. Unexpectedly low values on suspected high-titer specimens trigger automated reflex dilution workorders back to the Beckman Coulter Access 2 / DxI 800.
Q: How does AILS LIMS alert staff to critical panic results from the Beckman Coulter Access 2 / DxI 800?
Critical panic limits trigger immediate visual popups on laboratory dashboard screens and SMS alerts to attending physicians, creating a permanent timestamped audit trail compliant with ISO 15189.
