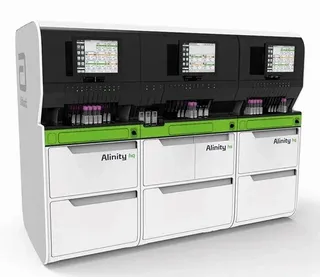

Abbott Alinity h Bi-Directional LIS Interfacing Guide
Complete engineering specification, HL7/ASTM protocols, pinouts, and parameter mapping for Abbott Alinity h on AILS Cloud LIMS.
1. Abbott Alinity h Diagnostic Architecture & Clinical Use
As an automated Hematology solution from Abbott Diagnostics, the Abbott Alinity h delivers high-reliability performance for High-throughput automated hematology solution integrating Multi-Angle Polarized Scatter Separation (MAPSS) technology.. By integrating the Abbott Alinity h into AILS Cloud LIMS, laboratories replace error-prone manual result logging with automated data ingestion. The platform supports continuous workflows at Up to 119 CBC + DIFF tests/hour per module, aspirates 35 µL closed tube, and validates clinical observation packets (29 reportable parameters including optical platelet counting and optical leukocyte differential) via verified HL7 v2.5.1 TCP MLLP framing.
When tube racks enter the aspiration carousel of the Abbott Alinity h, tube positions and accession numbers are validated in real time against active laboratory orders. AILS Gateway synchronizes with the instrument controller over Gigabit Ethernet RJ45, ensuring error-free specimen assignment prior to fluidic sampling of 35 µL closed tube.
Patient results from the Abbott Alinity h are cross-referenced against historical patient baselines in real time. Velocity checks and biological within-subject variation (CVi) limits flag implausible clinical shifts for supervisory pathologist review before final sign-off.
2. Abbott Alinity h TCP/IP Socket & Network Configuration
Gigabit Ethernet RJ45 | Settings: 1 Gbps TCP/IP. Handshake: HL7 query and result upload with scatterplot flag indicators
[Abbott Alinity h Ethernet IP] [AILS Gateway Socket Router] IP Assignment: Static / Fixed DHCP <=======> Listening Host IP: 192.168.1.X Target Port: Port 5000 / 5100 MLLP Frame Start: <VT> (ASCII 0x0B) --------> Buffer Allocation Frame End: <FS><CR> (0x1C 0x0D) --------> Checksum & Commit Record Handshake: Bi-Directional Commit ACK / DSR^Q03 Query-Response
3. Abbott Alinity h HL7 v2.x Message Stream
Below is a validated communication frame transmitted between the Abbott Alinity h and AILS LIS middleware:
MSH|^~\&|Abbott_Alinity_h|Abbott|AILS_GATEWAY|CENTRAL_LAB|20261030122000||ORU^R01|MSG_50050|P|2.5 PID|1||PAT842050||DOE^PATIENT_50||19840512|M OBR|1|ORD_ACC20261050|ACC20261050|Abbott Alinity h^Profile|||20261030122000 OBX|1|NM|751-8^NEUT#^LN||4.66|10*3/uL|2.00 - 7.50|N|||F|||20261030122000 OBX|2|NM|731-0^LYMPH#^LN||3.58|10*3/uL|1.00 - 3.50|N|||F|||20261030122000 OBX|3|NM|742-7^MONO#^LN||2.72|10*3/uL|0.20 - 1.00|N|||F|||20261030122000 OBX|4|NM|711-2^EO#^LN||2.52|10*3/uL|0.02 - 0.50|N|||F|||20261030122000 OBX|5|NM|704-7^BASO#^LN||2.51|10*3/uL|0.01 - 0.15|N|||F|||20261030122000 OBX|6|NM|770-8^NEUT%^LN||45.70|%|40.0 - 75.0|N|||F|||20261030122000
4. Abbott Alinity h Clinical Parameter LOINC & Reference Range Dictionary
| Instrument Code | LOINC Code | Clinical Parameter Name | Standard Units | Default Reference Range |
|---|---|---|---|---|
| NEUT# | 751-8 | Absolute Neutrophil Count | 10*3/uL | 2.00 - 7.50 |
| LYMPH# | 731-0 | Absolute Lymphocyte Count | 10*3/uL | 1.00 - 3.50 |
| MONO# | 742-7 | Absolute Monocyte Count | 10*3/uL | 0.20 - 1.00 |
| EO# | 711-2 | Absolute Eosinophil Count | 10*3/uL | 0.02 - 0.50 |
| BASO# | 704-7 | Absolute Basophil Count | 10*3/uL | 0.01 - 0.15 |
| NEUT% | 770-8 | Neutrophil Percentage | % | 40.0 - 75.0 |
5. Abbott Alinity h Biomedical Engineering Field Notes & Troubleshooting
Verified against Abbott Alinity h Operations Manual & Abbott Alinity h-series LIS Interface Specification
Aspiration Draw Volume: The Abbott Alinity h requires 35 µL closed tube. Sub-optimal draws or partially clotted specimens cause sample needle clogging and flag false thrombocytopenia in patient runs.
Interface Communication Settings: Configure the Gigabit Ethernet RJ45 port on the Abbott Alinity h to 1 Gbps TCP/IP. Ensure hardware flow control (RTS/CTS) is set according to Abbott Alinity h-series LIS Interface Specification to avoid buffer overrun.
Differential Flagging & Scattergrams: Verify that immature granulocyte, erythroblast (NRBC), and platelet clump flags generated by Abbott Alinity h are mapped to clinical review holds in AILS LIMS.
Barcode Accessioning Alignment: The onboard barcode scanner on Abbott Alinity h must be set to Code 128 / Interleaved 2 of 5 with check digits enabled, preventing mismatched accession numbers in bi-directional queries.
Preventative Flush & Shutdown: Strictly follow daily sodium hypochlorite cleaning cycles specified in Abbott Alinity h Operations Manual. Lyse reagent crystallization on the aperture orifice causes calibration drift across 29 reportable parameters including optical platele...
Frequently Asked Questions: Abbott Alinity h LIS Interfacing
Common biomedical engineering questions regarding connection, worklist setup, and data capture with AILS Cloud LIMS.
Q: How do I physically connect the Abbott Alinity h to AILS Cloud LIMS?
The Abbott Alinity h connects via Gigabit Ethernet RJ45 operating under HL7 v2.5.1 TCP MLLP. For network configurations, configure the instrument with a static IP and point to the AILS Gateway socket listener on 1 Gbps TCP/IP. The driver maintains an persistent MLLP TCP socket with automatic reconnect.
Q: Does the Abbott Alinity h support barcode query and automated worklist download?
Yes, the Abbott Alinity h supports bi-directional query. As racks advance, tube barcodes are checked in real time against AILS LIMS orders, eliminating manual batch entry and sustaining the Up to 119 CBC + DIFF tests/hour per module rating specified in Abbott Alinity h Operations Manual.
Q: How are 5-part differentials, flags, and scattergrams handled from the Abbott Alinity h?
AILS Gateway parses numerical differential counts and qualitative flags (such as immature granulocytes, blasts, or platelet clumps) emitted by the Abbott Alinity h. Flagged samples are automatically held for manual peripheral blood smear review.
Q: What quality control and critical alert capabilities exist for the Abbott Alinity h?
Quality control samples run on Abbott Alinity h are automatically logged into Levey-Jennings charts in AILS LIMS. Analytical runs violating 1-3s or 2-2s Westgard rules halt batch validation and alert the quality manager.
